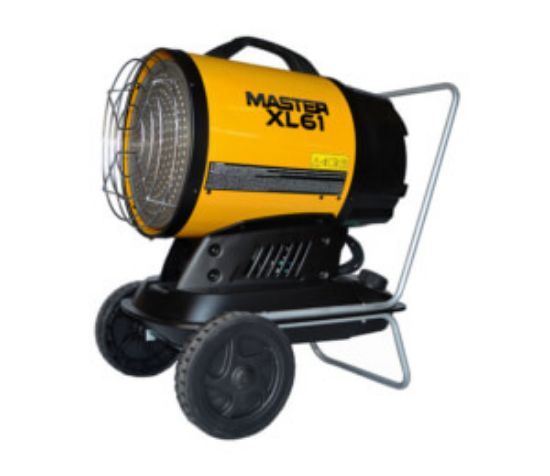

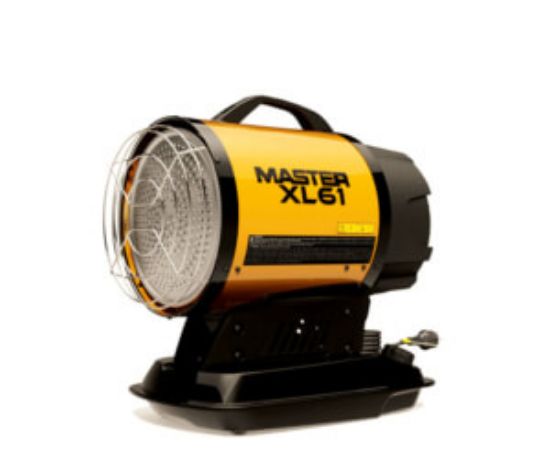

XL 61 – infrared oil fired heater

Infrared oil fired heaters with Master burner
SKU: XL 61
Enquire Now Brochure not available


Infrared oil heaters deliver heat fast and exactly to the place where it is required without any air movement. They are suitable for dust-free drying walls or paints, defrosting machinery or pipelines, heating the working areas.

Similar to the sun, short-wave infrared radiation heats the objects without heating the air. Once objects (or walls) are penetrated with heat, they can also reradiate and heat other objects. Infrared radiation heats through fog or wind. Infrared radiation travels straight, unlike hot air which rises. Infrared heaters are an excellent solution for:

  • Heating objects, bodies or walls indoors and outdoors.
  • Drying plaster walls. Infrared heat penetrates the wall and evaporates the humidity of the wall from inside. Unlike an air flow heater which creates a dry surface which traps humidity in the wall.
  • Heating objects or limited indoor spaces. Unlike other methods where the hot air is quickly dispersed in the room.
  • Saving energy, because less energy is required for achieving the same heating effect.

Key features

  • Low noise
  • Infrared heating (short wave)
  • No air flow
  • Electronic flame control with photocell
  • Post-ventilation
  • Standard oil level indicator
  • ILME socket for remote thermostat: analogue or digital
  • Suction filter and inlet filter
  • Snorkel
  • Overheat thermostat
  • Anti-tilt switch

Suitable for

  • Agriculture
  • Automotive
  • Construction
  • Emergency services
  • Events, festivals and temporary structures
  • General industry and production
  • Military and aerospace
  • Rental companies


Products specifications

Attribute nameAttribute value
System unit
Heating power (kW)17
Heating power(Btu/h)58000
Heating power(kcal/h)14,600
Fuel consumption(kg/h)1.35
Fuel autonomy(h)7
Thermostat controlAnalogue or digital
Electric power (kW)0.2
Power supply(V/Hz)220-240/1ph/50
Rated current(A)0.85
Tank capacity(l)11
Product size( l x w x h)(mm)560 x 345 x 575
Box size (l x w x h)(mm)600 x 380 x 580
Net/gross weight(kg)19/21
Heating radiation-0.5m (°C)110
Heating radiation-1m (°C)50
Heating radiation-1.5m (°C)20
