The WD range feature excellent quality door furniture and low leakage door seals, weatherproof options and many optional features. The selection software allows us to tailor the air handling units to your precise project requirements and quotations include detailed drawings (PDF or CAD format) and easy to read technical datasheets.
Features and advantages
Panels are double skinned type with nominally 50mm thick insulation and galvanised or ‘Plastisol’ exterior finish, in light grey (RAL 7035). Alternative colours are available. Panels shall be mounted on anodised aluminium pentapost framework, (thermal bridge free if required) and moulded corner pieces. Applications requiring stainless steel panels are not a problem and can be manufactured in various grades, as required.
Demountable or flat-pack
The units can be supplied suitable for dismantling and rebuilding in situ, if access is restricted. Alternatively, the units are available in ‘flat-pack’ form, on pallets, for building onsite. Dantherm direct-employed service engineers can offer an assembly service, if required.
AHUs are type tested to EN1886 standards: Casing Air Leakage Class L1, Casing Strength Class D1, Casing Thermal Insulation Class T3, Thermal Bridging Factor TB3, Filter Assembly Leakage F9.

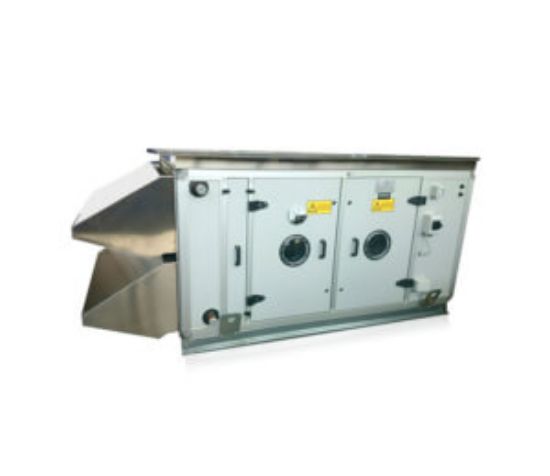

Weatherproof option
Outdoor units can be fully weatherproof for outdoor installation c/w sloping or flat roof, ‘Plastiol’ exterior finish, weather cowls.
