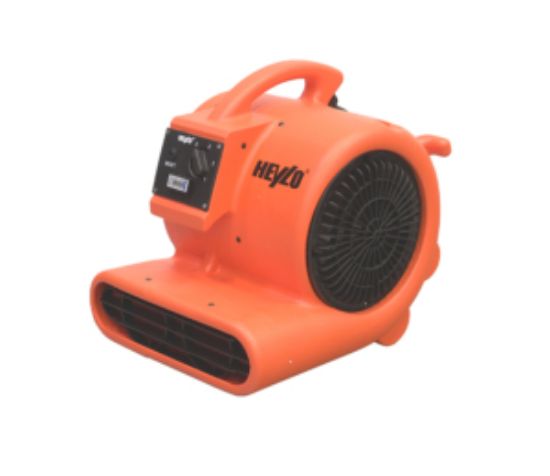

TD 2400 – radial ventilator

SKU: TD 2400

Enquire Now Brochure not available

Overview

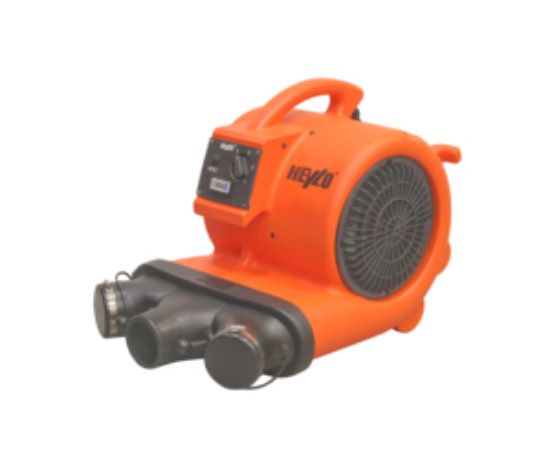

Targeted drying by connecting up to three hoses of 10m each (hose adapter included in the scope of delivery) and by variable installation positions.

The TD 2400 radial fan is particularly suitable for use in cavity drying, carpet drying and water damage restoration.

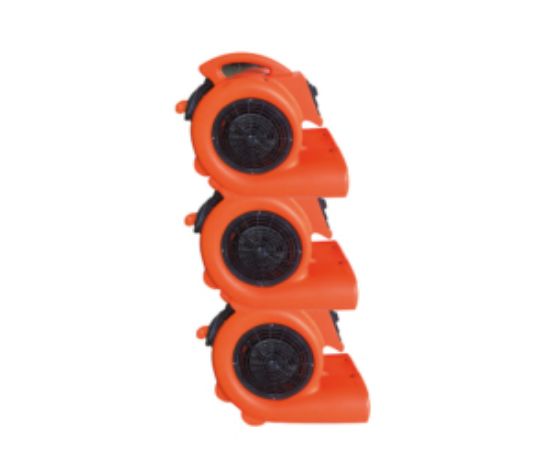

Due to its compact dimensions, the fan is easy to transport, lightweight and stackable.

Key features

Radial ventilator with an air flow rate of 1860m³/h

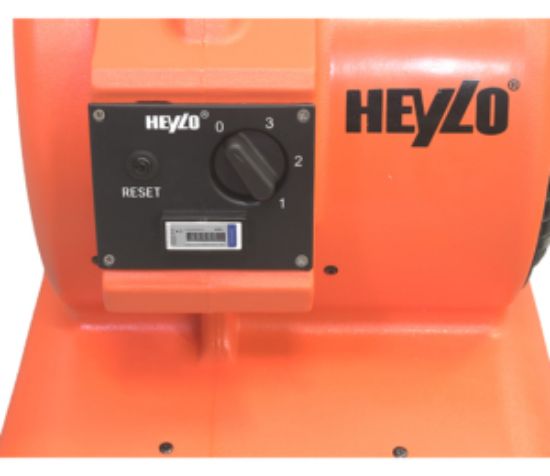

With three ventilator stages
Can be set up in several positions
Hose adapter
Powerful motor
Radial ventilator with SKF ball bearings for long service life
Very easy to maintain and stackable
Smoothly operating metal impeller
Operating hours counter
Overcurrent protection in case of overload for more safety

Suitable for

Products specifications

Attribute name	Attribute value
System unit
Air flow (m³/h)	1860
Air pressure(pa)	398
Fan type	Radial
Power consumption(kW)	0.68
Power supply(V/Hz)	230/1ph/50
Rated current(A)	3.06
Protection class	IP22
Sound level(dB(A))	68
Hose(Ømm)	3x102
Net weight(kg)	14.5
Product size( l x w x h)(mm)	480 x 430 x 480
Recommended number of ducts (7.6m)(piece)	3
