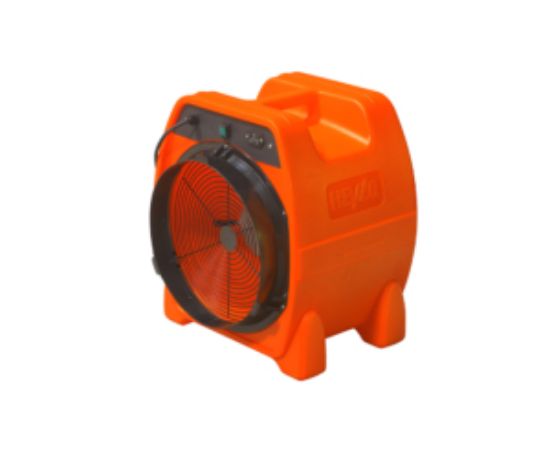

PowerVent 6000 – axial ventilator

Enquire Now Brochure not available

Overview

The PowerVent 6000 is a high performance ventilator for fast drying and venting. The fan is used in building construction, underground engineering, ventilation in tunnels and shafts, as well as in industry. It is used for dust extraction, as well as cooling and ventilation. The PV 6000 provides a maximum airflow with adequate low electrical power. The PowerVent 6000 is a high performance ventilator for fast drying and venting. The fan is used in building construction, underground engineering, ventilation in tunnels and shafts, as well as in industry. It is used for dust extraction, as well as cooling and ventilation. The PV 6000 provides a maximum airflow with adequate low electrical power.

The fan also transports the air over long distances and with high counter-pressure. Hose operation up to 50m is possible. With the PowerVent 6000, the connection of different distributors allows a more targeted ventilation by means of several hoses.

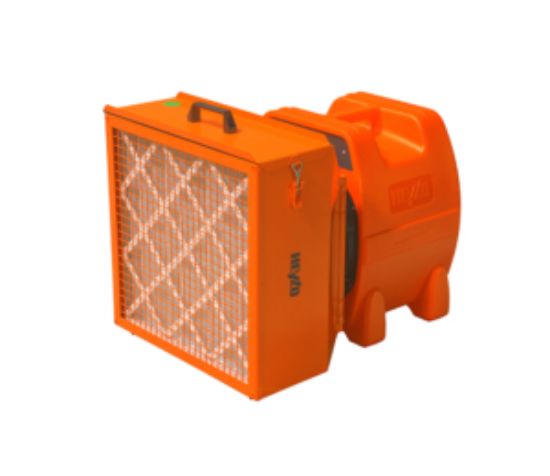

For dust removal, the connection of a dust bag of the M-Class or a filter housing is possible. Further information can be found at these products:

  • Air cleaning dust extraction PV 6000 combi
  • Air cleaning StaubStop 6000

Key features

  • Ventilator with an air flow rate of 5410m³/h
  • Impeller with the highest pressure
  • Hose connection on suction and pressure side
  • Connection of a dust bag of the M-Class is possible
  • Very service-friendly due to upper control box
  • Power cable suitable for construction side (H07RN-F)
  • Easy transport thanks to practical handle and low weight
  • Housing made of ABS plastic for high robustness
  • Stackable
  • Operating light in the power switch

Products specifications

Attribute nameAttribute value
System unit
Product code1110824
Air flow (m³/h)5410
Air pressure(pa)377
Fan typeAxial
Power supply(V/Hz)230/1ph/50
Rated current(A)3.6
Protection classIP44
Sound level(dB(A))84
Product size( l x w x h)(mm)615 x 515 x 500
Net weight(kg)18.3
