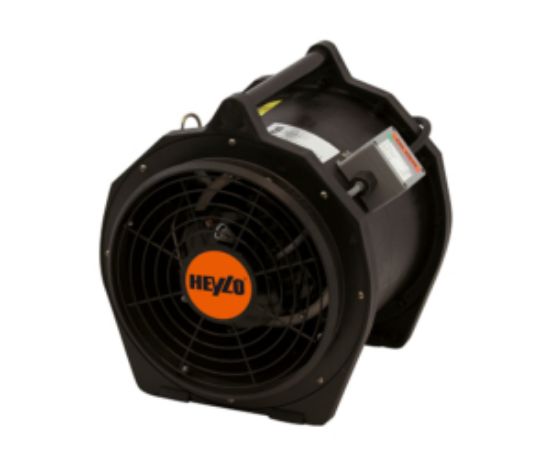

PowerVent 4200 EX – axial ventilator

Enquire Now Brochure not available

Overview

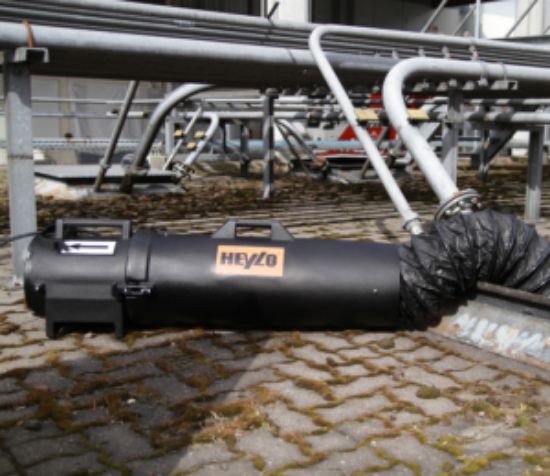

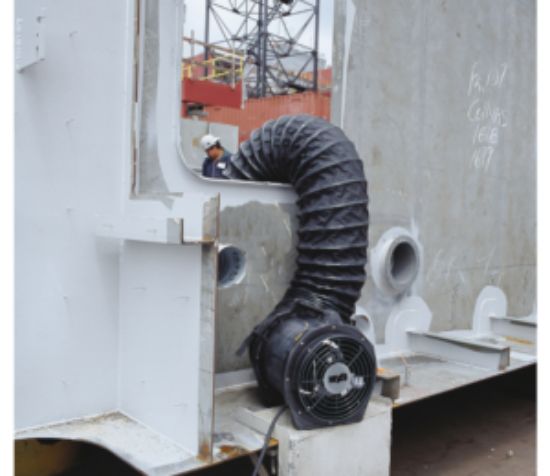

In potentially explosive environments, the transport ventilator PowerVent 4200 EX is the right choice. They draw off dangerous gases safely and quickly.

The casing is made of a robust ABS carbon plastic passes voltage into the floor and thus prevents static charges and for this reason dangerous sparking.

The casing and motor sealing is in keeping with the high protection class IP65 and offers an effective protection against dust and water. Anti-static hoses ensure safe operation.

Special features in explosion-proof areas: Installation conditions and different hazardous areas have to be observed. Connect device to explosion-proof power socket only. Earth anti-static hoses, when required.

ATEX: motor/housing: II 2G EEx de IIB T6 / II 2 G EEx d IIB

Key features

Axial ventilator explosion-proof with an air flow rate of 2093m³/h
Protection class IP65 (effective against dust and water)
Robust housing made of high-quality plastic
Low energy consumption
Easy transport ensured by practical handle

Suitable for

Products specifications

Attribute name	Attribute value
System unit
Product code	1110810
Air flow (m³/h)	2093
Air pressure(pa)	314
Fan type	Axial
Power consumption(kW)	0.56
Power supply(V/Hz)	230/1ph/50-60
Rated current(A)	3
Sound level(dB(A))	89
Hose(Ømm)	305
Product size( l x w x h)(mm)	406 x 381 x 406
Net weight(kg)	20
Protection class	IP65
