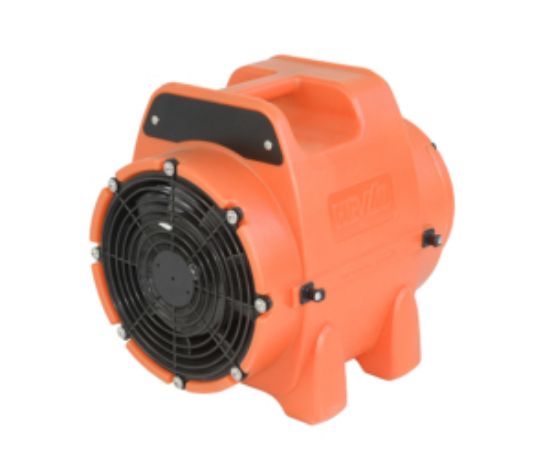

PowerVent 1500 Z1 – axial ventilator

Enquire Now Brochure not available


The combination of ventilator and earthed hose canister is suitable in particular for the ventilation of explosive areas, such as filling stations, fuel depots and filling bodies. In case of repair work in particular on manhole pits, this unit can be used to replace explosive gases by fresh air quickly.

The housing and motor sealing is in keeping with the high protection class IP44 and offers an effective protection against dust and water.

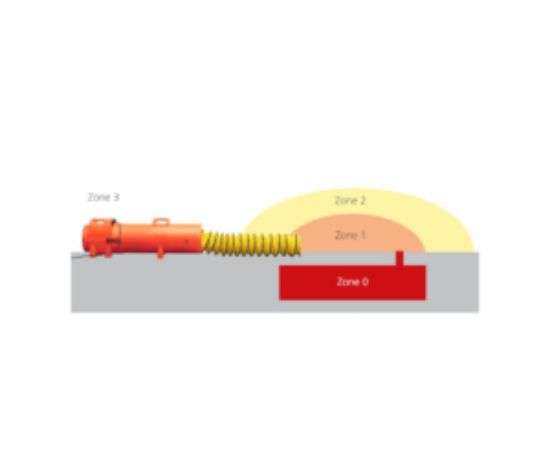

Erection of Compact 1500 Z1 in explosive areas:

  • Installation conditions and different hazardous areas have to be observed.
  • The ventilator must be operated in zone 3 only.
  • The hose of the hose canister be passed through zone 2 into zone 1.

Key features

  • Ventilator with an air output of 1162m²/h
  • For tank ventilation in potentially explosive areas
  • Installation only in zone 3
  • Strong pressure
  • Easy to set up and quick transportable
  • Light-weight and compact
  • Only approved with Z1 hose canister
  • Hose connection by means of a hose container (optional)

Products specifications

Attribute nameAttribute value
System unit
Product code1110837-A
Air flow (m³/h)1162
Air pressure(pa)266
Fan typeAxial
Power consumption(kW)0.164
Power supply(V/Hz)230/1ph/50
Rated current(A)0.72
Protection classIP44
Sound level(dB(A))68
Product size( l x w x h)(mm)380 x 310 x 350
Net weight(kg)8
