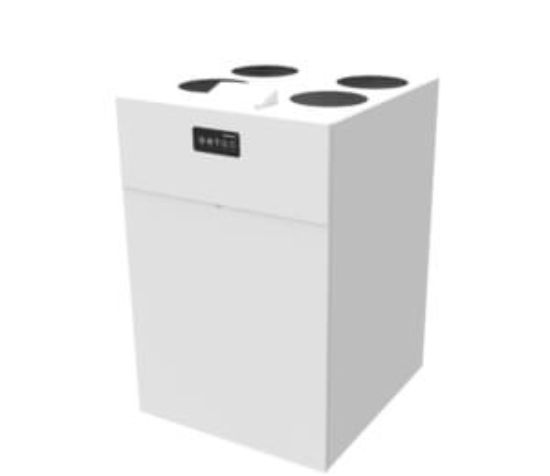

HCV 700 – residential ventilation unit

SKU: HCV 700
Enquire Now Brochure not available

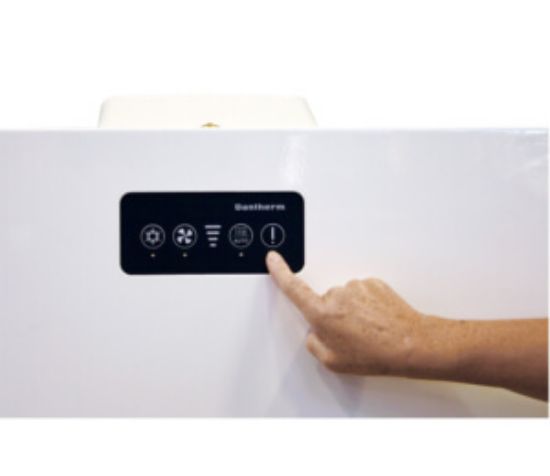

The HCV 700 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m2 or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and are delivered with all parts necessary for wall installation. The HCV 700 is ideal for free wall installation with minimum 700mm space. A standard wall rail is supplied with all units.

Key features

  • Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
  • Summer mode, in which supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
  • Fireplace mode, creating a temporary inside overpressure, to enhance chimney functionality
  • High-efficiency heat recovery
  • EC fan motors with extremely low energy consumption (low SPI)

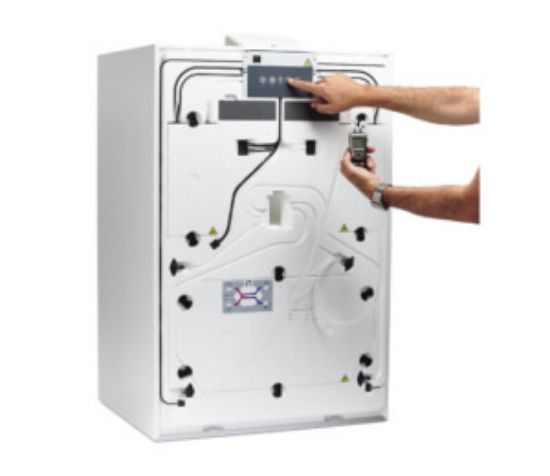

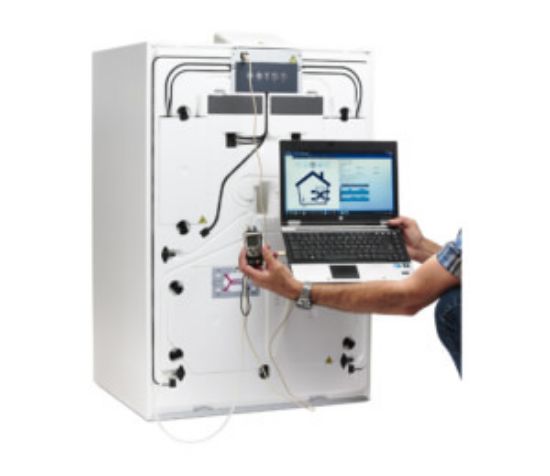

  • Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
  • Highly customizable units, with the option to add a high variety of internal as well as external accessories
  • A standard wall rail is supplied with the unit

Products specifications

Attribute nameAttribute value
System unit
Operating range (minimum @50Pa – maximum @100Pa) (V | m³/h)80 to 450
EN 13141-7 reference flow at 50Pa(VREF | m³/h)315
Thermal efficiency in accordance with EN13141-7(ηSUP | %)85 to 88
Specific power consumption in accordance with EN13141-7(SFP |W/m³/h)0.22
Leakage (external and internal) in accordance with EN13141-7(%)<2% (Class A1)

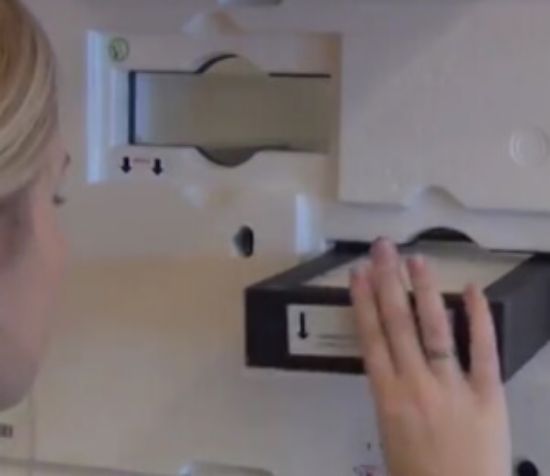

Filters in accordance with ISO16890ISO Coarse 75% (optional optional on supply: ePM1>50% )
Filters in accordance with EN779G4 (optional on supply: F7)
Installation surrounding temperature range(tSURR | °C)+12 to +50
Outdoor temperature range with preheating installed(tODA | °C)-20 to +50
Spigots/duct connections(Ømm)200 – female
Dimensions (without wall bracket)(w x d x h | mm)700 x 750 x 1050
Thermal conductivity – polystyrene insulation(λ | W/mK)0.031
Heat transition figures – polystyrene insulation(U | W/m²K)<1, <1
Fire classification of the polystyrene insulation(class)DIN 4102-1 class B2 EN 13501 class E
Voltage(U | V)230
Maximum power consumption without/with preheater(P | W)234/1834
Protection classIP21
