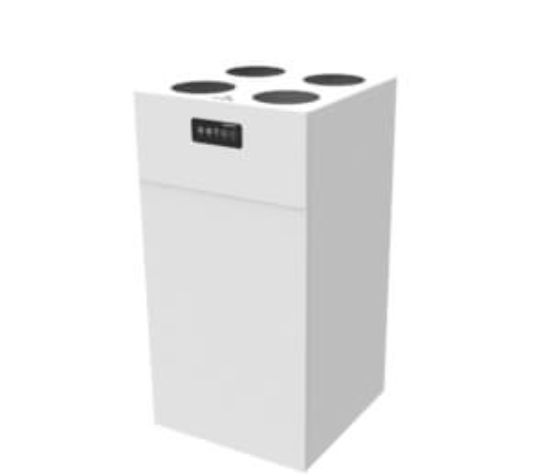

Residential Ventilation Unit | HCV 460 P2

Overview

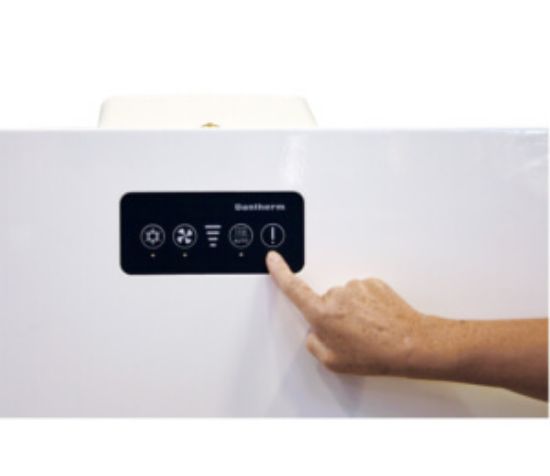

The HCV 460 P2 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m² or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and is delivered with all parts necessary for wall installation. The HCV 460 P2 also fits perfectly in a 60 x 60cm cupboard.

Key features

Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
Summer mode in which supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
Fireplace mode, creating a temporary inside overpressure to enhance chimney functionality
High-efficiency heat recovery
EC fan motors with extremely low energy consumption (low SPI)

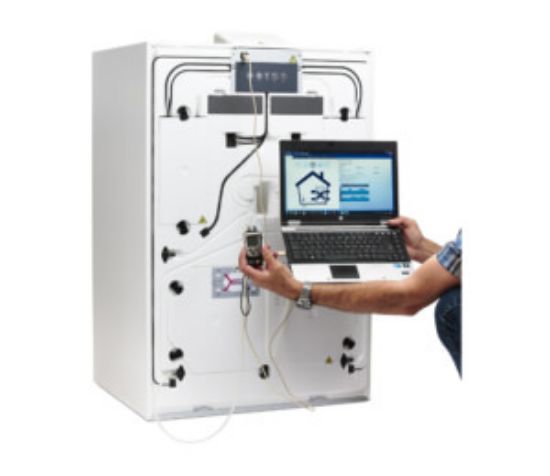

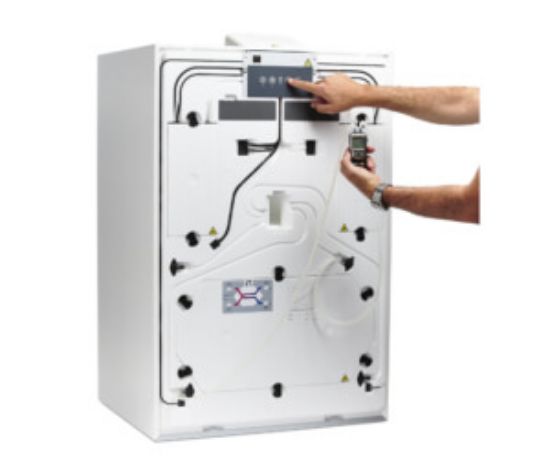

Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
Highly customizable units with the option to add a high variety of internal as well as external accessories
The HCV 460 takes up only as little space as a 60 x 60cm cupboard

Suitable for

Buildings and commercial spaces

Products specifications

Attribute name	Attribute value
System unit
Maximum nominal flow(V \| m³/h)	460
Maximum rated flow at 100Pa(Vmax \| m³/h)	360
Operating range DIBt(VDIBt \| m³/h)	70-360
Operating range Passivhaus @100Pa(VPHI \| m³/h)	106- 270
EN 13141-7 reference flow @50Pa(VREF \| m³/h)	252
Thermal efficiency in accordance with EN13141-7(ηSUP \| %)	86
Leakage (external and internal) in accordance with EN13141-7(%)	<2% (Class A1)

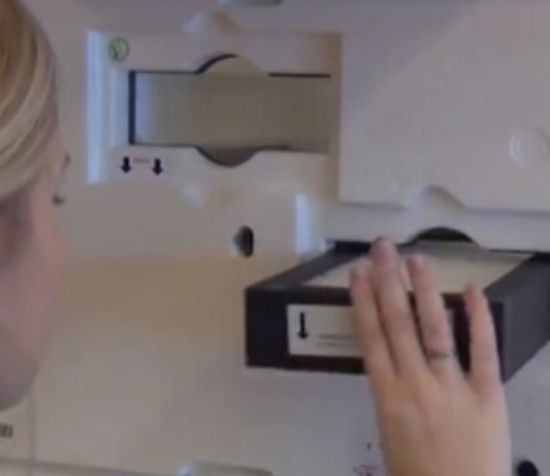

Filters in accordance with EN779	ISO Coarse 75% (optional on supply: ePM1>50%), ISO Coarse 75% (optional on supply: ePM1>50%)
Filters in accordance with EN779	G4 (optional on supply: F7)
Installation surrounding temperature(tSURR \| °C)	+12 to +50
Outdoor temperature range without preheating installed(tODA \| °C)	-12 to +50
Outdoor temperature range with preheating installed(tODA \| °C)	-20 to +50
Maximum absolute humidity in extract air(x \| g/kg)	10
Spigots/duct connections(Ømm)	160 – female
Weight(kg)	40
Thermal conductivity – polystyrene insulation(λ \| W/mK)	0.031
Heat transition figures – polystyrene insulation(U \| W/m²K)	U<1
Fire classification of the polystyrene insulation(class)	DIN 4102-1 class B2 EN 13501 class E
Drainage hose (included)(Ø \| ")	¾/1
Cabinet colour(RAL)	9016
Voltage(U \| V)	230
Maximum power consumption (without/with preheater)(P \| W)	230/2080
Frequency(f \| Hz)	50
Protection class	IP21
