HCV 460 E1 – residential ventilation unit

SKU: HCV 460 E1
Enquire Now Brochure not available

Overview

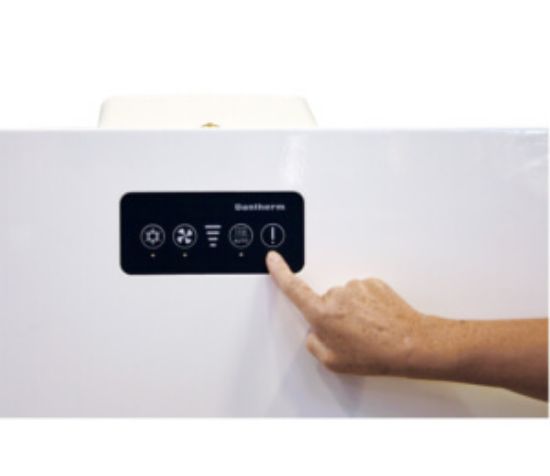

The HCV 460 E1 is a highly efficient residential ventilation unit for houses, villas, and apartments of up to 450m2 or more. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and is delivered with all parts necessary for wall installation. The HCV 460 E1 also fits perfectly in a 60 x 60cm cupboard.

Key features

  • Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
  • Summer mode in which supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
  • Fireplace mode, creating a temporary inside overpressure to enhance chimney functionality
  • High-efficiency heat recovery
  • EC fan motors with extremely low energy consumption (low SPI)

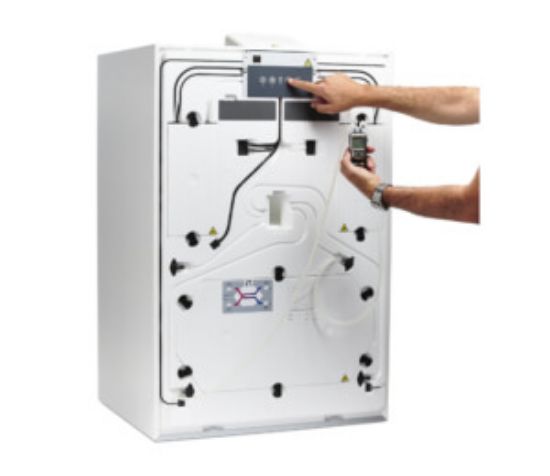

  • Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
  • Highly customizable units with the option to add a high variety of internal as well as external accessories

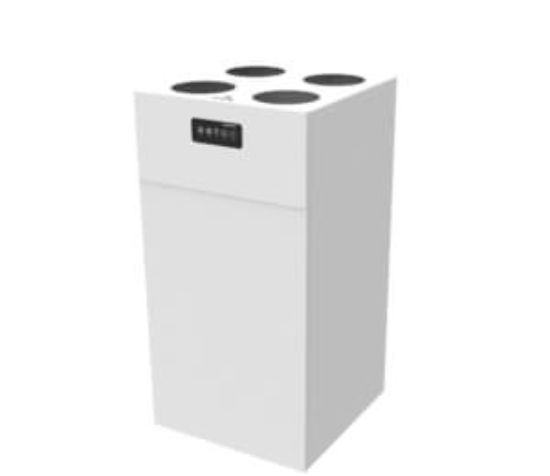

  • The HCV 460 takes up only as little space as a 60 x 60cm cupboard

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Maximum flow at 100Pa(V | m³/h)460
Maximum rated flow at 100Pa(Vmax | m³/h)360
EN 13141-7 reference flow @50Pa(VREF | m³/h)252
Thermal efficiency in accordance with EN13141-7(ηSUP | %)77
Leakage (external and internal) in accordance with EN13141-7(%)<2% (Class A1)

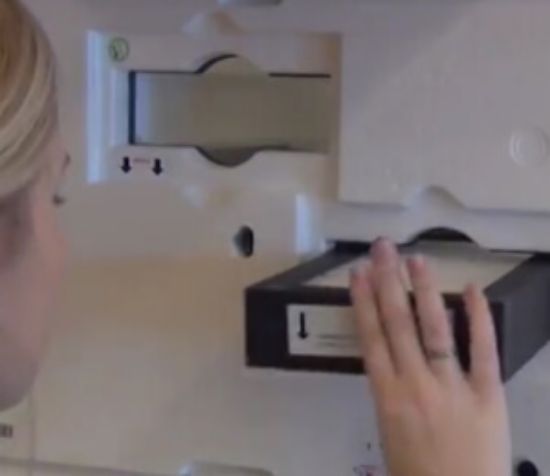

Filters in accordance with ISO16890ISO Coarse 75% (optional optional on supply: ePM1>50% )
Filters in accordance with EN779G4 (optional on supply: F7)
Installation surrounding temperature(tSURR | °C)+12 to +50
Outdoor temperature range without preheating installed(tODA | °C)-12 to +50
Outdoor temperature range with preheating installed(tODA | °C)-20 to +50
Maximum absolute humidity in extract air(x | g/kg)10
Exterior dimensions without wall brackets(w x d x h | mm)540 x 549 x 1050
Spigots/duct connections(Ømm)160 – female
Weight(kg)40
Heat conductivity – polystyrene insulation(λ | W/mK)0.031
Heat transfer coefficient of the polystyrene insulation(U | W/m²K)U<1
Fire classification of the polystyrene insulation(class)DIN 4102-1 class B2 EN 13501 class E
Drainage hose (included)(Ø | ")¾/1
Cabinet colour(RAL)9016
Voltage(U | V)230
Maximum power consumption without/with preheater(P | W)230/2,080
Frequency(f | Hz)50
Protection classIP21
