Residential Ventilation Unit | HCV 400P1

Overview

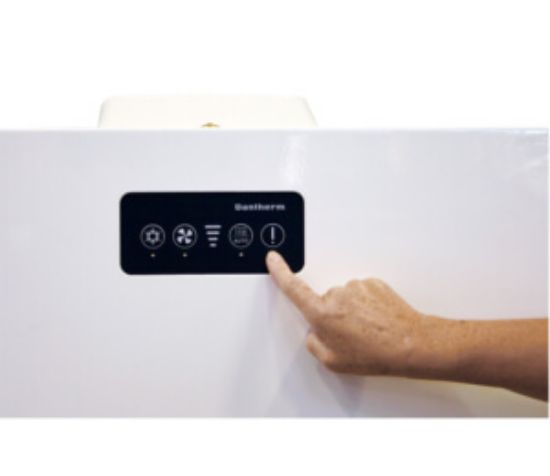

The HCV 400P1 is a highly efficient residential ventilation unit for houses, villas, and apartments. It comes supplied as a packaged basic ventilation unit complete with built-in control panel, and is delivered with all parts necessary for wall installation. The HCV 400 P1 also fits perfectly in a 60 x 60cm cupboard.

Key features

Demand-controlled ventilation with integrated humidity sensor, reducing power consumption at times with low ventilation demands
Summer mode in which the supply fan is stopped and any open window will supply cooler outside air, lowering the room temperature
Fireplace mode, creating a temporary inside overpressure to enhance chimney functionality
High-efficiency heat recovery
EC fan motors with extremely low-energy consumption (low SPI)

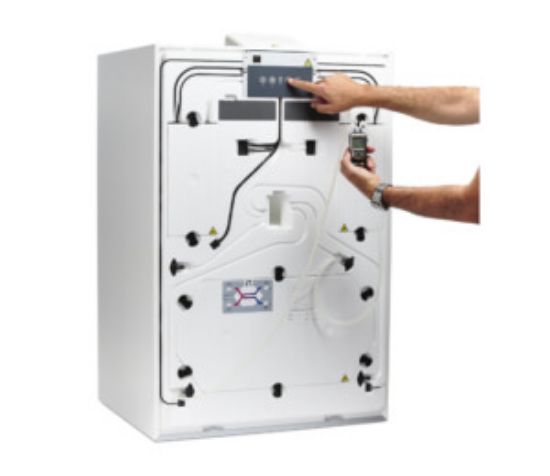

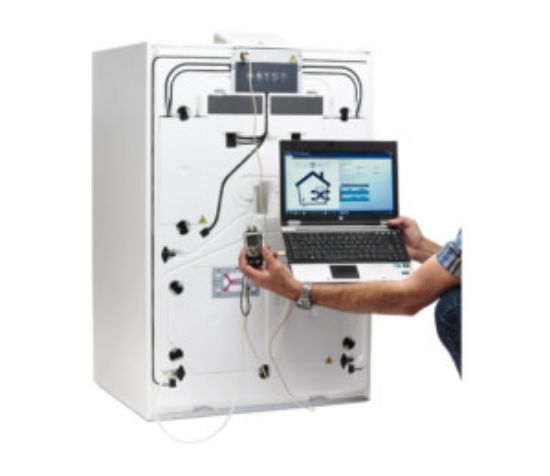

Easy-to-install and commission solution with built-in air pressure spigots for easy calibration
Highly customizable units with the option to add a high variety of internal as well as external accessories

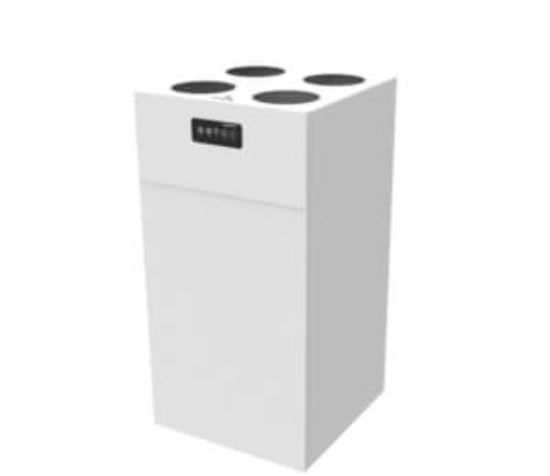

Ducts can be connected to the top of the unit, with the option to connect the supply duct to the base if ducts are to run beneath the floor
The HCV 400P1 takes up only as little space as a 60 x 60cm cupboard

Suitable for

Buildings and commercial spaces

Products specifications

Attribute name	Attribute value
System unit
Operating range (minimum @50Pa – maximum @100Pa) (V \| m³/h)	80 to 250
Thermal efficiency in accordance with EN13141-7(ηSUP \| %)	91 to 97
Specific power consumption in accordance with EN13141-7(SEL/SYI \| m³/h)	0.23
Leakage (external and internal) in accordance with EN13141-7(%)	<2% (Class A1)
Filters in accordance with ISO16890	ISO Coarse 75% (optional optional on supply: ePM1>50% )
Filters in accordance with EN779	G4 (optional on supply: F7)
Installation ambient temperature(tSURR \| °C)	+12 to +50
Outdoor temperature range without preheating installed(tODA \| °C)	-12 to +50
Outdoor temperature range with preheating installed(tODA \| °C)	-20 to +50
Maximum absolute humidity in extract air(x \| g/kg)	10
Dimensions (without wall bracket)(w x d x h \| mm)	540 x 549 x 1050
Spigots/duct connections(Ømm)	160 – female
Weight(kg)	39
Thermal conductivity – polystyrene insulation(λ \| W/mK)	0.031
Heat transition figures – polystyrene insulation(U \| W/m²K)	<1
Fire classification of the polystyrene insulation(class)	DIN 4102-1 class B2 EN 13501 class E
Drainage hose (included)(Ø \| ")	¾/1
Cabinet colour(RAL)	9016
Voltage(U \| V)	230
Maximum power consumption (without/with preheater)(P \| W)	170/1,570
Frequency(f \| Hz)	50
Protection class	IP21
