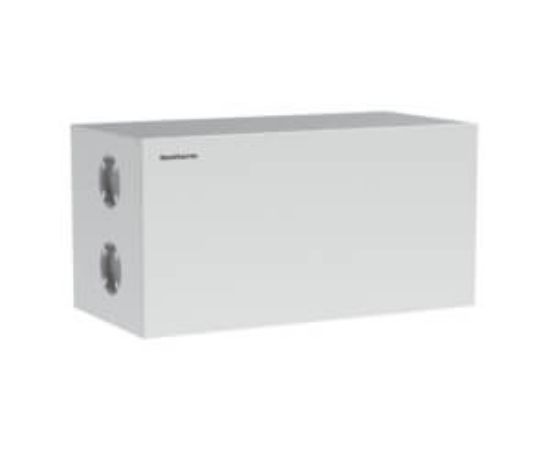

HCH 5 – residential ventilation unit

SKU: HCH 5
Enquire Now Brochure not available

Overview

The HCH residential ventilation units are primarily designed for 1-2 family houses. The units are supplied as packaged ventilation units complete with built-in demand-control and a control panel. The residential ventilation units are fitted with highly efficient counter-flow heat exchangers which are optimised to a very high efficiency level thus achieving a very low specific fan power (SPI value) for the entire unit.

Key features

  • Demand-controlled ventilation with integrated humidity sensor
  • High-efficiency heat recovery
  • EC motors with extremely low energy consumption (low SPI)
  • Easy-to-install solution with pressure pipes for air volume measurement and adjustment on the unit
  • HCH models are suitable for installation on uninsulated attics

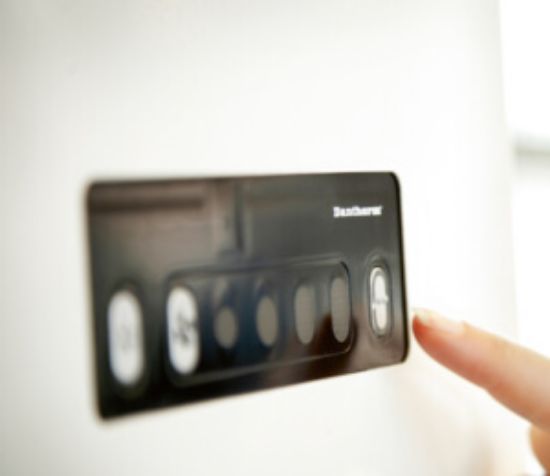

  • Separate HCH control panel included, plus a 2m cable

HCH models

The HCH residential ventilation units are horizontal models designed to be fitted in the loft or on the floor of a plant room. They fulfil the ventilation requirements of houses up to app. 475m<sup>2</sup>, depending on national requirements and the actual pressure loss in the installation.

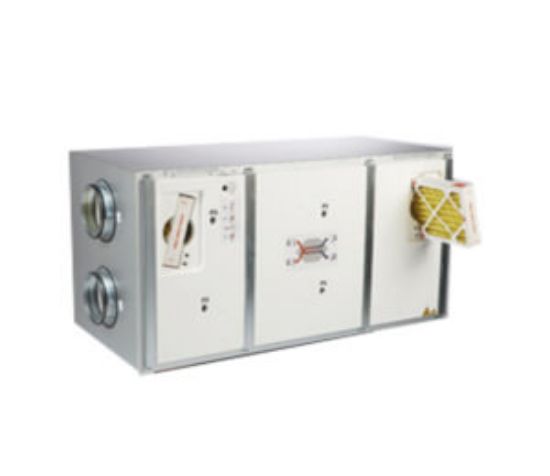

All HCH models have duct connections at the ends and service access at the front. Electrical connection is at the end of the unit facing the fresh air – right-hand – side. The ducts connected to the home (supply and extract) are always on the left-hand side of the unit. The condensation drain is located at the rear of the unit.

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Maximum air flow(m³/h)375
Energy consumption class – average climate(SEC-class)A, A+
Heat exchanger typeDantherm aluminium counterflow heat exchanger
Thermal efficiencyUp to 95%
BypassYes

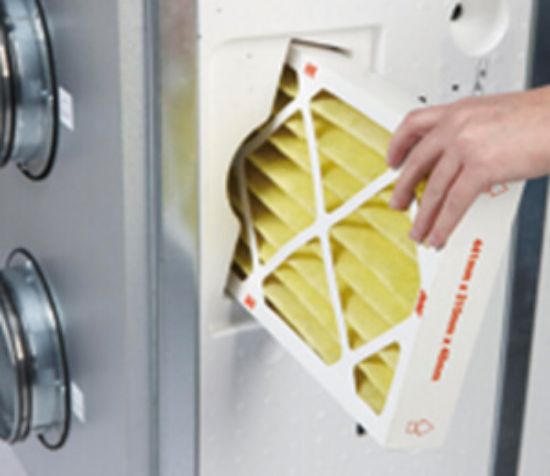

Filters in accordance with ISO16890ISO Coarse 75% (optional optional on supply: ePM1>50% )
Filters in accordance with EN779G4 (optional on supply: F7)
Surrounding temperature where the unit is installed (°C)-20 to +50
Operational temperature range without preheating(°C)-13 to +50
Operational temperature range with preheating(°C)-20 to +50
Leakage (external and internal) according to EN 13141-7(class)<2% (Class A1)
Dimesions (w x h x d)(mm)1180 x 600 x 580
Duct connection(mm)160
Weight unit(kg)52
Weight including packaging(kg)66
Dimensions including packaging and pallet(w x d x h | mm)1210 x 610 x 750
Outer cabinet materialAluzink
ColourAlzunik grey
Cabinet insulation, polystyrene(mm)40
Insulation factor – cabinet(W/m2x °K)0.78
Fire classification – whole unit(EN 13501)class E
Fire classification – polystyrene cabinet(DIN 4102)class B1
Protection classIP20
Separate HCP 4 control panel included plus 2m cableYes
Supply voltage(V)1 x 230
Frequency(f | Hz)50
Maximum current consumption, without pre- and after-heat(A)0.7
Maximum power consumption, without pre- and after-heat(W)154
