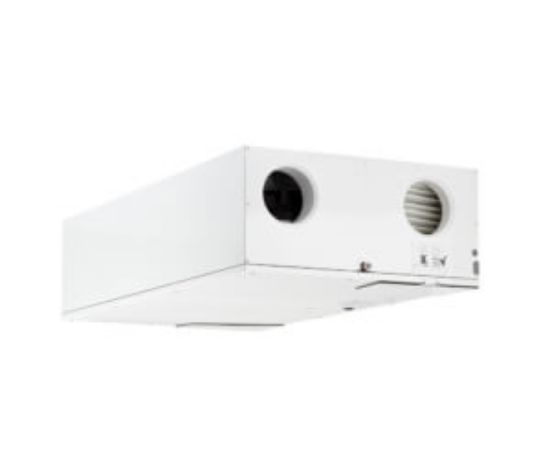

HCC 2PLA – residential ventilation unit

SKU: HCC 2PLA
Enquire Now Brochure not available

Overview

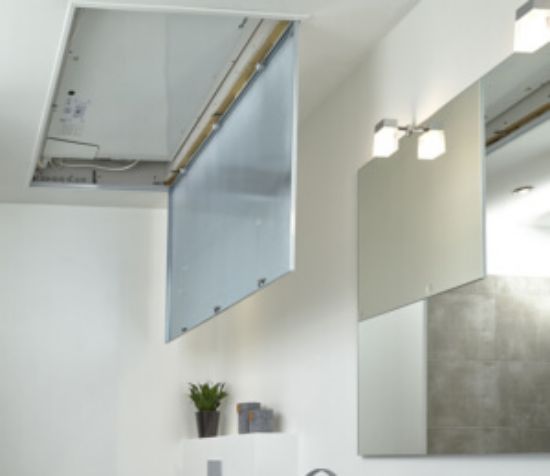

The HCC 2 is a unique and flexible residential ventilation solution. With only 30cm installation headroom it is ideal for installation in suspended ceilings or onto a wall, even hidden inside a closet. The unit can be electronically reversed, meaning that both air flows will be reversed. This allows the same unit type to be mounted with the inside/outside ducts connected to either the right or the left hand side of the unit. Electrical connections can be connected from either the left or the right.

Key features

  • High efficiency heat recovery – up to 94%
  • EC fan motors with low energy consumption (low SPI)
  • Only 300mm installation headroom height is required
  • Time controlled ventilation level, based on 11 different built-in pre-programmed week programs, reducing power consumption in periods with low ventilation demands
  • Summer cooling mode
  • Fireplace mode, creating a momentary inside overpressure, to enhance chimney functionality

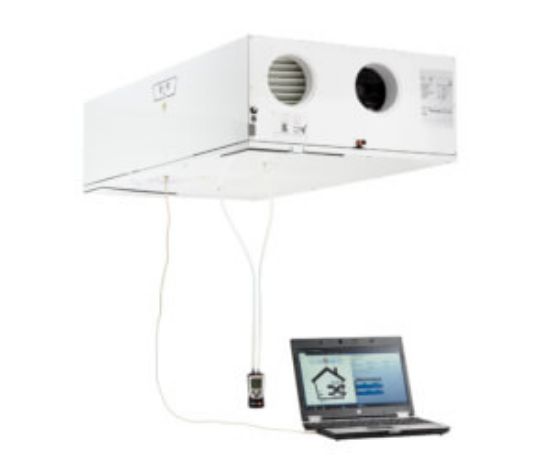

  • Easy-to-install and commissioning solution with built in air measure ports, for easy balancing with PC-Tool
  • Electronically left/right fan direction switching, allowing same unit type to adapt any physical installation requirements, regardless of ceiling and wall selection
  • TCP/IP ModBus connection, for inter-operation with Building Management System
  • Painted in white
  • Electrical connections can be connected from either the left or the right

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Maximum nominal flow(V | m³/h)180
Operating range DIBt(VDIBt | m³/h)70 to 140
Operating range Passivhaus @100Pa(VPHI | m³/h)70 to 140
EN 13141-7 reference flow @50Pa(VREF | m³/h)126
Thermal efficiency DIBt(ηSUP | %)93.8
Thermal efficiency Passivhaus(ηSUP | %)93
Thermal efficiency EN 13141-7 at reference flow(ηSUP | %)94
Cabinet sound power at reference flow at 140 m³/h and 100Pa(Lw(A) | dB(A))45
Duct sound power level (supply/extract) at 140 m³/h and 100Pa(Lw(A) | dB(A))60/45
Leakage (external and internal) according to EN 13141-7(class)<2% (Class A1)
Filters in accordance with EN779ISO Coarse 75% (optional on supply: ePM1>50%)
Installation surrounding temperature range(tSURR | °C)+12 to +40
Filters in accordance with EN779G4 (optional on supply: F7)
Maximum humidity in extract air at 25°C(RH %)55
Outdoor temperature range with preheating installed(tODA | °C)-15 to +45
Outdoor temperature range without preheating installed(tODA | °C)-12 to +45
Dimensions (without wall bracket)(w x d x h | mm)600 x 279 x 1122
Spigots/duct connections(Ømm)125 – female
Weight(kg)34
Drainage hose (included)(Ø | ")½
Cabinet colour(RAL)9016
Fire classification of the polystyrene insulationDIN 4102-1 class B2 EN 13501 class E
Voltage(U | V)230
Maximum power consumption (without/with preheater)(P | W)127/1,027
Frequency(f | Hz)50
Protection classIP21
