Destratifiers | E36202-48202-56002-60002

Overview

Master destratifiers can be used during summer and winter to improve the climate in the room.

Key features

The most powerful ceiling fans available on the market
Working area up to 14 meters
Heavy duty construction for many years of hassle-free use
The aerodynamic shape moves moves large volumes of air
Balanced motor and blades for vibration-free operation
The motor is protected from thermal overload as it is equipped with thermal protection and automatic reset
Can work in harsh professional conditions

Winter destratification

The hot air flows upstream. The Master ceiling fan pushes heat back down to the floor. The resulting energy saving is about 30%.

Summer ventilation

The Master ceiling fan creates an air flow which helps moisture evaporate from the skin, with an improvement of about 4°C on the perceived temperature. The fan supports the air-conditioning allowing the air to feel 23°C even when the thermostat shows 27°. It is perfect for humid environments and eliminates mould and dust.

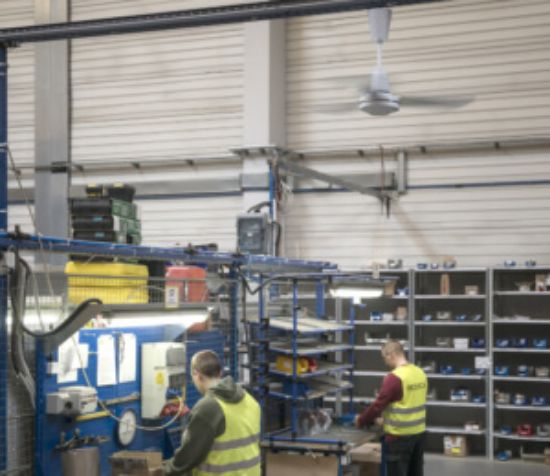

Side view of an installation

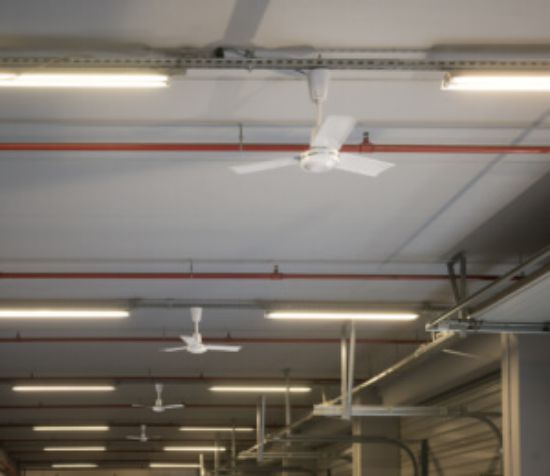

Example of distribution of the destratifiers in a factory

Suitable for

Products specifications

Attribute name	Attribute value
System unit
Air flow (m³/h)	19,900
Maximum area in destratification(m²)	140
Turning diameter(mm/inch)	900/36
Fan type	Axial-Blades
Colour/number of blades	White/3
Power supply(V/Hz)	230/1ph/50/60
Power consumption(W)	71
Rated current(A)	0.31
Max. speed(rpm)	325
Max. working height(m)	4
Product size( l x w x h)(mm)	900 x h 600
Box size (l x w x h)(mm)	660 x 250 x 250
Net/gross weight(kg)	7.7/9
Pallet(pcs)	45
