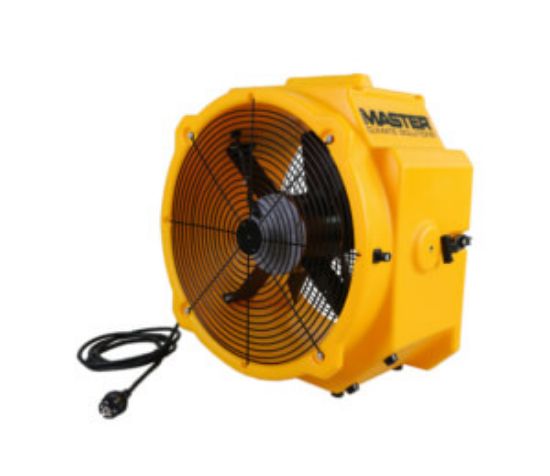

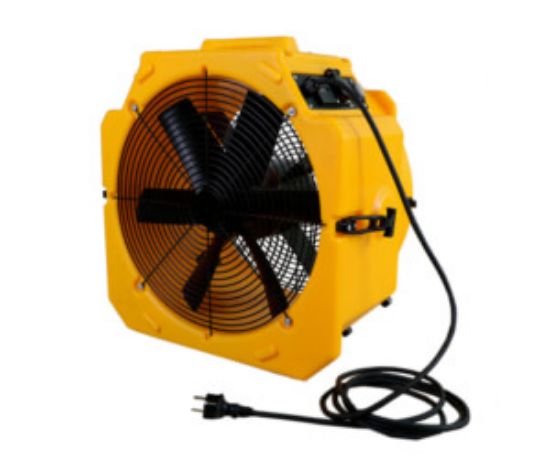

DFX 20 – professional fan

SKU: DFX 20

Enquire Now Brochure not available

Overview

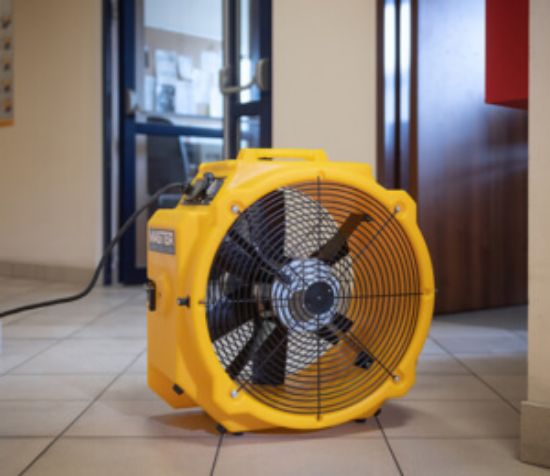

These professional, rotomoulded fans support drying, heating and cooling equipment. They can be used in rooms that need improved ventilation and air circulation, as well as help in drying moist areas.

Key features

Robust, plastic rotomoulded casing
Easy to use and transport
High air flow
Axial fan
2 speeds

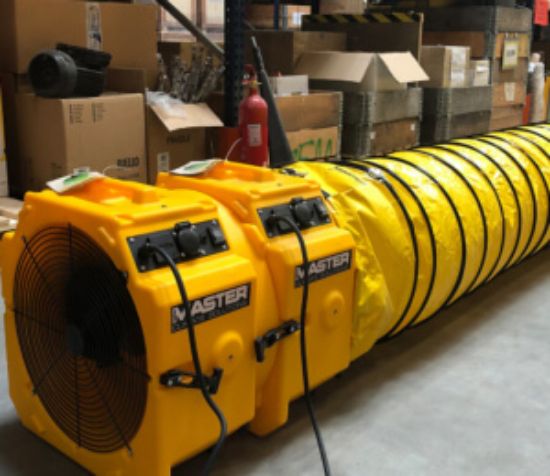

Ductable

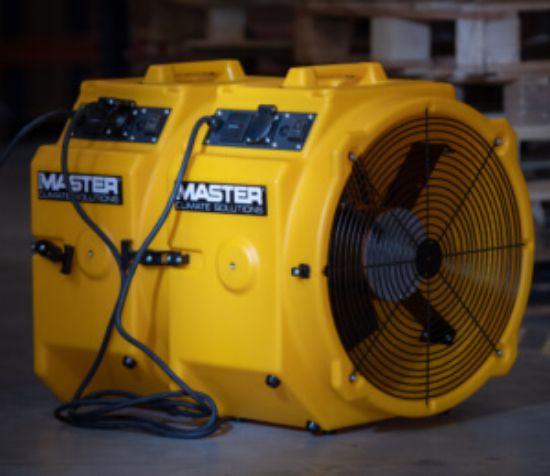

Stackable: with 2 rubber straps to lock the units one to another

Suitable for

Products specifications

Attribute name	Attribute value
System unit
Air flow (m³/h)	5,430/6,450
Maximum air pressure (Pa)	225
Fan type	1 x Axial
Fan speed	2
Power consumption(W)	195/285
Power supply(V/Hz)	220-240/1ph/50
Outlet diameter (cm)	40
Nominal fan power consumption (at 100% fan speed)(W)	782
Air current	Blow out
Protection class	IP44
Product size( l x w x h)(mm)	525 x 320 x 550
Box size (l x w x h)(mm)	550 x 365 x 570
Net/gross weight(kg)	12.6/14
Pallet(pcs)	12

The professionals choice

Master® is the leader in portable kerosene heaters, pushing the envelope of design and engineering to bring forth the next steps in heating technology industry professionals trust all over the world.
