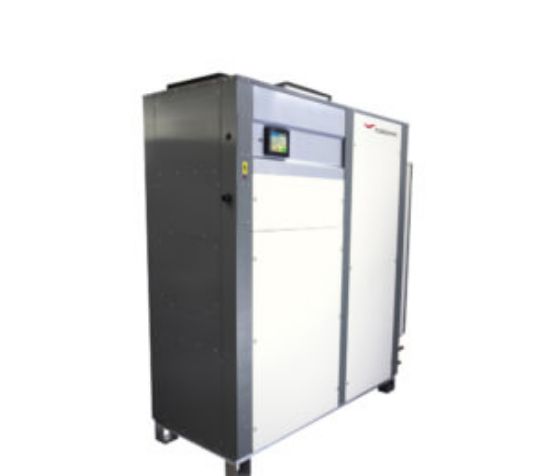

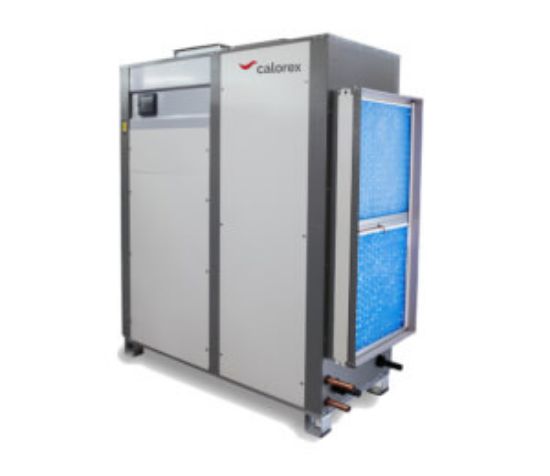

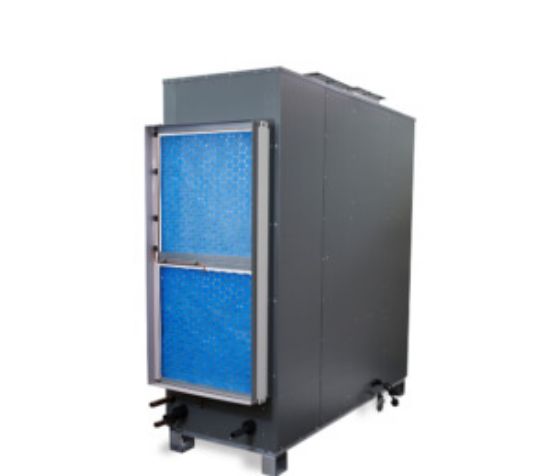

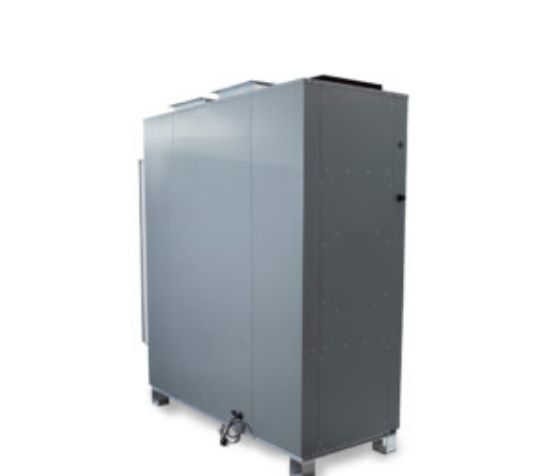

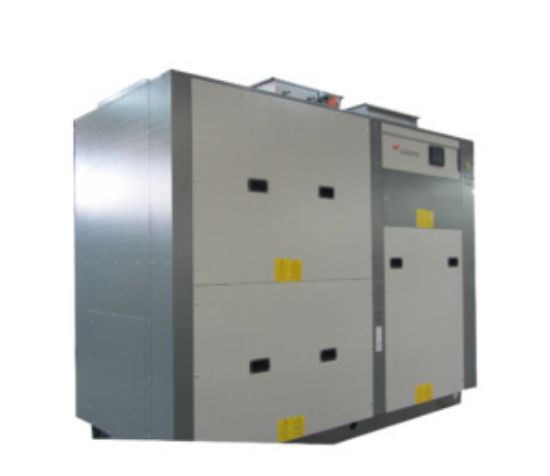

Delta series – swimming pool air handling units

Enquire Now Brochure not available

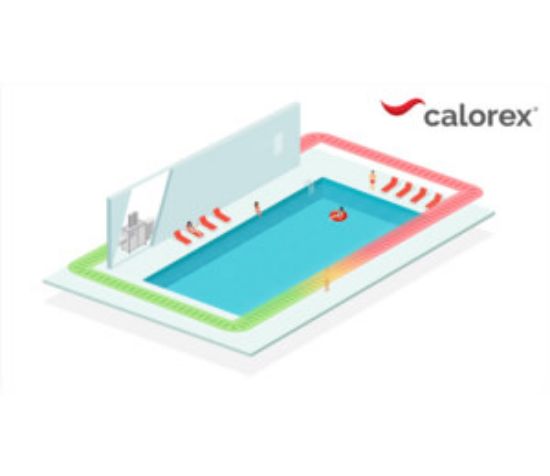

The sophisticated Delta air handling units incorporate hybrid heat pump and fresh air dehumidification technology. With dynamic heat recovery to swimming pool water and air using a heat pump, a Delta solution is the ultimate choice for a commercial or public indoor swimming pool.

Key features

  • Dynamic heat pump heat recovery to pool and air
  • Self-regulating fresh air control with heat recovery
  • Automatic control of exhaust air volume to match pool usage
  • Free-cooling (Delta 1-2)
  • Free-cooling and heat pump air cooling (Delta 4-16)
  • Integral LPHW heat exchangers for pool and air
  • Speed controllable EC/inverter fans in all models

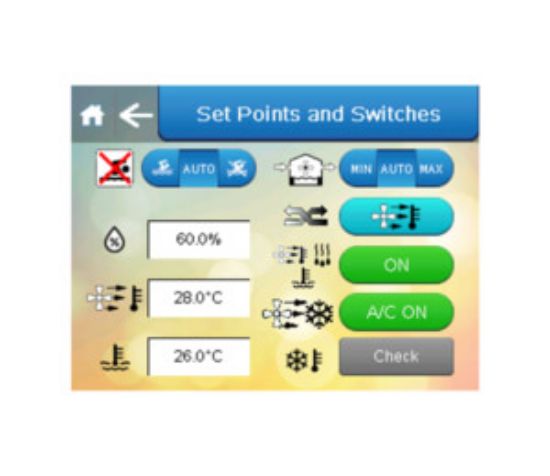

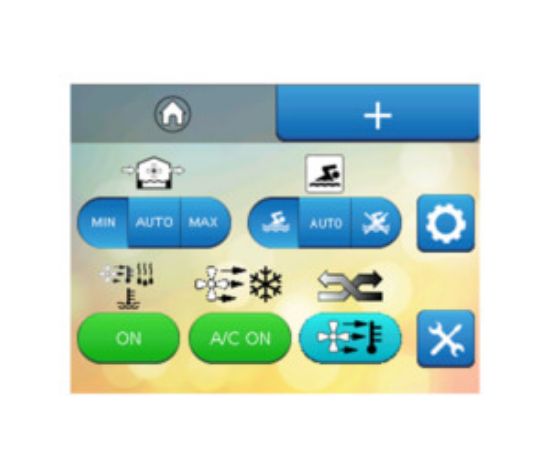

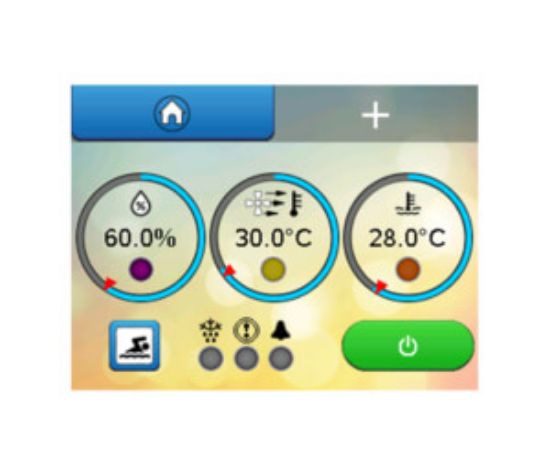

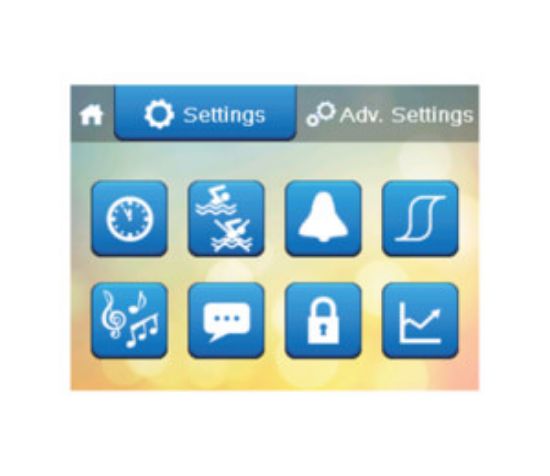

  • PLC control with 5.7" touchscreen user interface
  • Remote monitoring/control​

Remote monitoring/control​

  • Screen mirroring to Android/iOS mobile devices using third-party app
  • Screen mirroring to web browser with ActiveX
  • BMS interfaces for Modbus, BACnet IP and BACnet MS/TP
  • Wired remote control interfaces


  • Delta 2-6 single or three phase
  • Delta 8-16 three phase only
  • Upgraded LPHW heat exchanger for air heating
  • Left-hand or right-hand orientation (Delta 4-16)
  • Top, side or bottom supply fan outlet
  • Front or rear supply fan outlet (Delta 14-16)
  • Rear exhaust and fresh air connections (Delta 14-16)

Products specifications

Attribute nameAttribute value
System unit
Nominal recirculation air flow(m³/h)2,600
Exhaust/fresh air flow (stepped control)(m³/h)130-1,300
Total dehumidification @ 28°C/60% RH by heat pump and maximum fresh air(l/h)10.9
Via heat pump (Mode B)(4.9)4.9
Via standard LPHW @ 80°C (kW)22
Via upgraded LPHW @ 55°C(kW)19
Total Mode B + standard LPHW(kW)26.9
Via heat pump (Mode A)(kW)5.5
Via LPHW @ 80°C(kW)18.0
Via LPHW @ 55°C(kW)11
Total Mode A + LPHW(kW)28.5
Nominal power consumed(kW)2.9
R407c gas weight/CO2 equivalent(kg/t)3.0/5.32
Height(mm)1115, 1685
