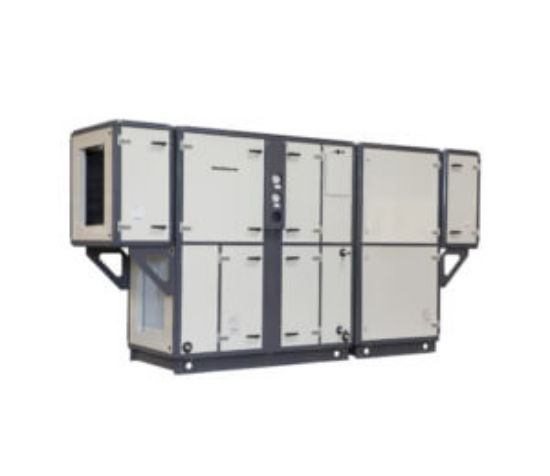

DanX XKS – swimming pool air handling units

Enquire Now Brochure not available

Overview

The DanX XKS is a very effective outdoor air dehumidification system with highly efficient cross flow heat exchanger. This system perfectly controls the humidity and indoor temperature while offering significant running cost reductions due to real energy savings of up to 80%. The integrated mixing function ensures that only the exact quantity of outdoor air needed is supplied – which keeps running costs at a minimum.

Key features

  • User-friendly control system for high-quality demand management. Automatic monitoring and control of temperature and humidity of the pool hall.
  • Crossflow heat exchanger with a high efficiency of more than 75% and a low pressure drop.
  • Built-in bypass for free cooling in the summertime.
  • Highly energy-efficient EC plug fans.
  • Efficient bag filters in different lengths and qualities with low pressure drops are available.
  • Load-bearing frame construction module with hot-dip galvanised, powder-painted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet.
  • Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchanger, heating coil with aluminium frame, pre-painted fins and epoxy coating to protect all fasteners, bolts, nuts.
  • IP66 damper motors designed for swimming pool use.
  • Large inspection doors with strong hinges and tongue locks and handles for easy access for service.
  • Modular unit for easy and quick installation with all sensors and electrical components already connected. Separate control panel fitted with cables and plugs for quick electrical connection between unit and panel.
  • BMS communication with either Modbus or BACnet.

DanX XKS with cross flow heat exchanger

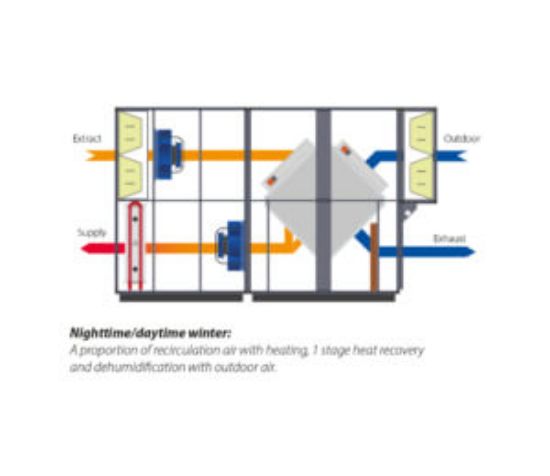

The DanX XKS is a very effective outdoor air dehumidification system with highly efficient cross flow heat exchanger. This system perfectly controls the humidity and indoor temperature while offering significant running cost reductions due to real energy savings of up to 80%. The integrated mixing function ensures that only the exact quantity of outdoor air needed is supplied – which keeps running costs at a minimum.

Free cooling is also an option during summer, when the unit can add up to 100% outdoor air into the pool area through the integrated by-pass.

For countries with high outdoor summer temperatures the system can be equipped with an additional cooling coil for further dehumidification and air cooling.

Optionally a large variation of fan types, filter qualities and coils are offered for the perfect match to the requirements.

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Max air volume(m³/h)4500
Outdoor air volume(%)0-100
Dehumidification capacity VDI 2089(kg/h)22
Max. total power consumption(kW)2.2
Power supply(V/Hz)400/3ph/50
Height(mm)1600
Depth(mm)880
Weight(kg)850
