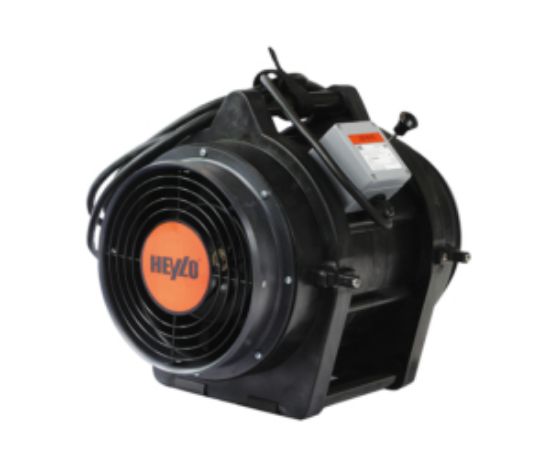

ComPact 1500 EX – axial ventilator

Enquire Now Brochure not available


In potentially explosive environments, the fan extracts hazardous gases safely and quickly. For ventilation in logistics warehouses and for remediation work in contaminated areas. For repair and maintenance work at petrol stations and tank installations, in manholes and tanks. For use in the chemical industry and for fire brigade operations.

The housing made of a robust plastic material dissipates stresses into the ground and thus prevents static charging and dangerous sparking. The housing and motor seals comply with the high protection class IP 55 and provide effective protection against dust and water. Antistatic hoses ensure safe operation.

Special features in potentially explosive atmospheres:
 Installation conditions and the different hazardous areas must be observed; only connect the unit to explosion-protected mains sockets; ground antistatic hoses if necessary.

ATEX: motor/housing: II 2G EEx de IIB T6 / II 2 G EEx d IIB

Key features

  • Axial ventilator explosion-proof with an air flow rate of 1195m³/h
  • Robust housing made of high-quality plastic
  • Protection class IP55 (effective against dust and water)
  • Low energy consumption
  • Easy transport ensured by practical handle

Products specifications

Attribute nameAttribute value
System unit
Product code1110827
Air flow (m³/h)1195
Air pressure(pa)195
Fan typeAxial
Power consumption(kW)0.25
Power supply(V/Hz)230/1ph/50
Rated current(A)1.2
Protection classIP55
Sound level(dB(A))74
Product size( l x w x h)(mm)330 x 305 x 355
Net weight(kg)8.2
