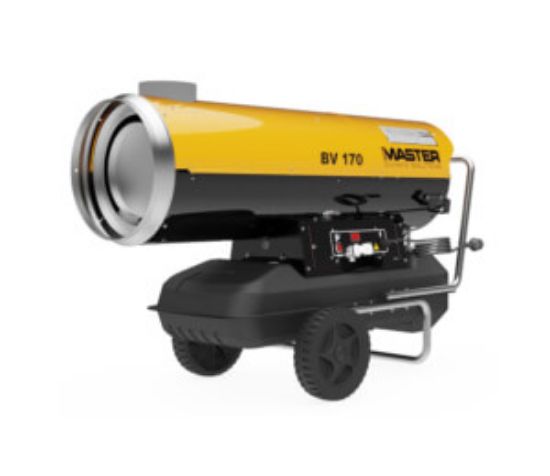

BV 170 – indirect oil fired air heaters

Indirect oil fired air heaters – high pressure
SKU: BV 170
Enquire Now Brochure not available

Overview

Master indirect oil heaters are highly efficient and generate 100% clean, dry and fume-free warm air. They are ideal for places with limited ventilation like shops, event tents, food preparation areas or exhibition halls. They can be used with flex hoses to distribute the warm air.

Key features

  • Clean hot air
  • Optional connection to a flexible tube
  • Flue gas exhaust
  • Heat exchanger
  • Overheat thermostat
  • Post-ventilation
  • Thermally protected motor
  • Three oil filters: oil pump filter, suction filter and inlet filter
  • External suction filter with transparent glass cup
  • Electronic flame control with photocell
  • Stainless steel combustion chamber
  • Oil tank with level indicator
  • Trolley included
  • High quality brand fuel pump
  • Fuel pump with access for easy maintenance
  • Snorkel – breather for non-drip fuel tank
  • Diagnostic LED



Suitable for

  • Agriculture
  • Automotive
  • Buildings and commercial spaces

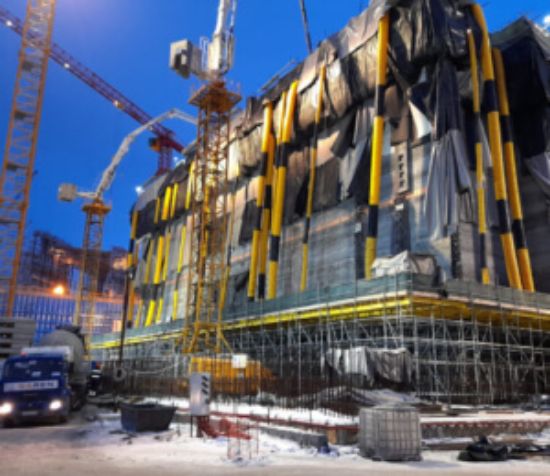

  • Construction

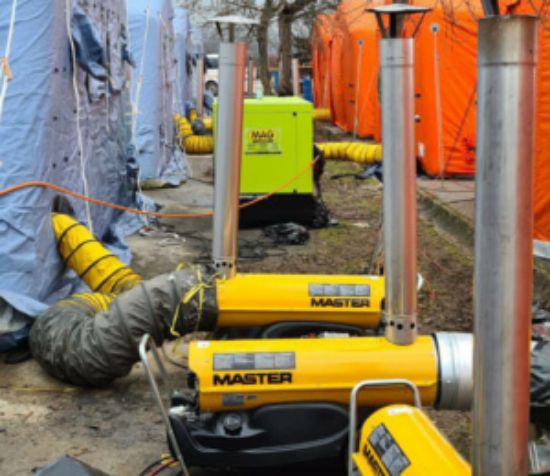

  • Emergency services

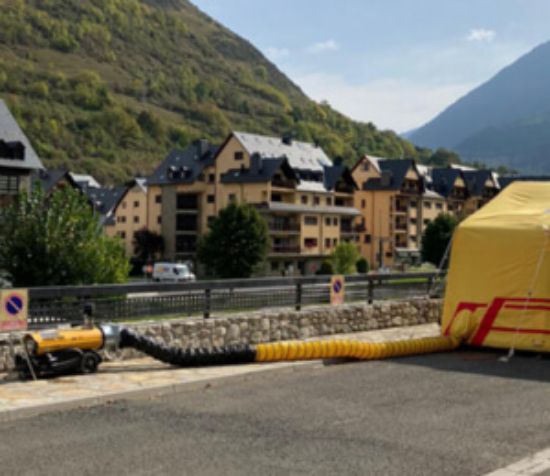

  • Events, festivals and temporary structures
  • General industry and production

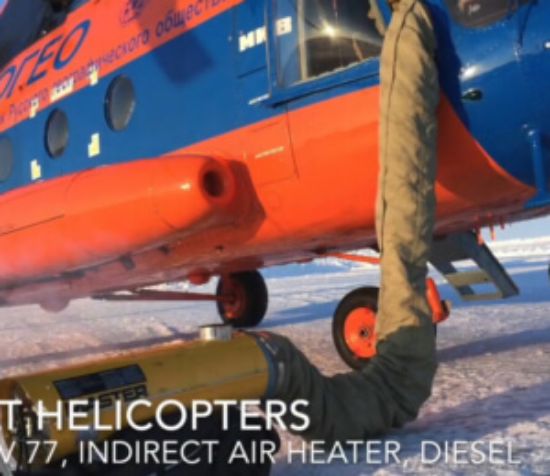

  • Military and aerospace
  • Rental companies

Products specifications

Attribute nameAttribute value
System unit
Heating power (kW)49
Heating power(Btu/h)167,200
Heating power(kcal/h)42,100
Air flow (m³/h)1,800
Fuel autonomy(h)14
Thermostat controlAnalogue or digital
Fuel consumption(l/h)4.7
Power supply(V/Hz)220-240/1ph/50
Electric power (kW)0.8
Rated current(A)3.5
Tank capacity(l)65
Protection classIP44
Flue tube(Ømm)150
Box size (l x w x h)(mm)1330 x 650 x 1000
Net/gross weight(kg)67/84
Pallet(pcs)1
Dual voltageAvailable
Product size (l x w x h)(mm)1350 x 575 x 1000
Flex tube(Øcm)34
