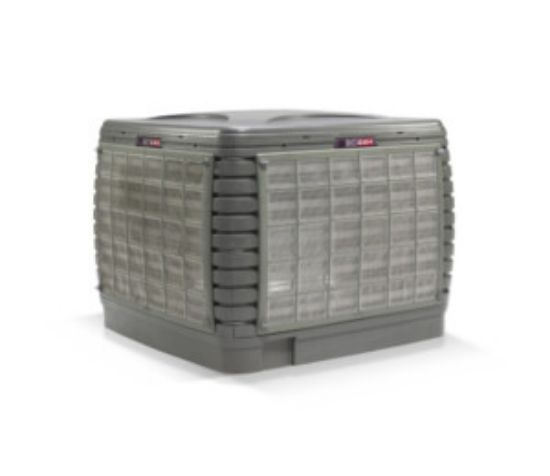

BIO EXH – air extractor

SKU: BIO EXH
Enquire Now Brochure not available

Overview

The Bio-air conditioning is a way of cooling, in addition is economic, healthy and ecological. This system allows the constant renewal of air, improving its quality as introduces clean and filtered air inside the space, evacuating bad odours, smoke and gases to the outside, allowing to maintain the open spaces.

Key features

  • Extraction unit only – complementary to Biocool cooling system
  • Simple installation
  • Energy-saving and eco-friendly
  • Low noise
  • Fast and quick maintenance
  • External power swift disconnector fuse protects the unit and allows maintenance works with security
  • Pre-filters prevent polluting particles being brought into the cooling pads

Evaporative cooling is present in nature

Sometimes nature puts at our disposal resources that make our life more comfortable and respectful with the environment. The evaporative cooling is present in nature,in places close to the water as the waterfalls, lakes, seas and oceans and even on the human skin. The primitive men already applied rudimentary cooling techniques on the basis of this observation.

Biocool reproduces the effect of a sea breeze, driving fresh air where it may be needed.

How it works

As the air passes through the cooling pads, some of the heat is absorbed by natural evaporation and a fresh breeze is blown out.

Temperature of the air emitted is between 4°C and 12°C lower that the outdoor air, at approximately 20 to 25ºC.

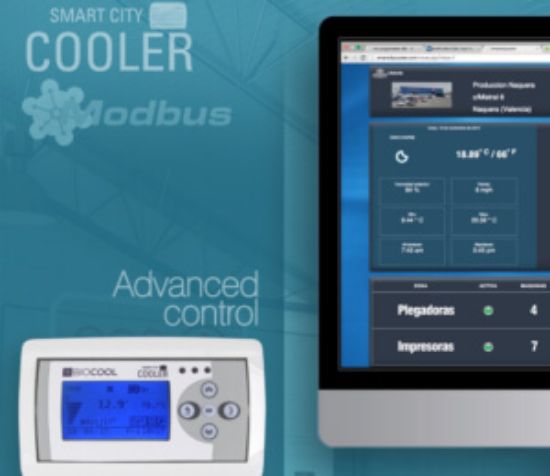

The machine has automatic control which minimize maintenance and allow it to be adapted to different applications controlling the optimal desired conditions.

This combination makes living spaces more comfortable.

A sustainable system

The Bio-air conditioning is a natural way of cooling, in addition is economic, healthy and ecological. This system allows the constant renewal of air, improving its quality as introduces clean and filtered air inside the space, evacuating bad odours, smoke and gases to the outside, allowing to maintain optimal ambient healthiness.

Antimicrobial ozone technology

Keeping your unit clean has never been so easy

The integrated ozone system reduces the quantity of microbes in the water during the first hour of operation and removes them completely after three to four hours of operating. This has been demonstrated by research.

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Air flow (m³/h)18,000
Min. energy consumption(W)360
Max. energy consumption(W)1200
Max. current(A)5.6
Fan typeAxial
Fan diameter(mm)600
Max. fan speed(rpm)1390
Engine power1100/60 to 200-264V
Engine power supply(V/Hz)220/1ph/50
Engine variable speed range(rpm)170-1390
Max sound level(dB(A))<70
Remote controlyes
Product size( l x w x h)(mm)1150 x 1150 x 950
Shipping dimensions (l x w x h)(mm)1150 x 1150 x 1050
Net/gross weight(kg)60/70
