BC 80 – evaporative cooler

SKU: BC 80
Enquire Now Brochure not available

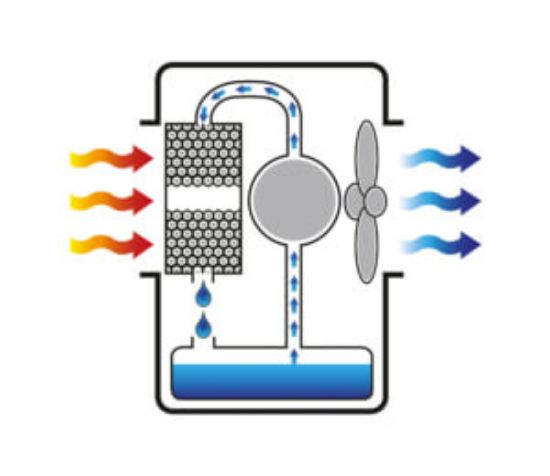

Master evaporative coolers cool the air using a simple natural process – the evaporating water decreases the temperature of the air. A pump takes the water from a tank and dampens a large pad made of natural cellulose. A powerful ventilator aspires air through the filter. The water evaporates from the filter and decreases the temperature of the air by several degrees. The fresh and clean air flows into the room and cools it down.

Key features

  • Easy to move on wheels – ideal for rental
  • Flaps can swing automatically
  • No installation required – connect to water hose or refill tank and enjoy cool air
  • Eco friendly: no compressor, no gas, very low energy and water consumption
  • Ionizer to improve air quality – the cooler refreshes and cleans the air of fumes, dust and odours
  • Remote control to easily find your ideal cooling modus
  • Air filters to ease maintenance

Benefits of evaporative cooling

  • The use of Master air coolers strongly reduces the CO₂ impact compared to air-conditioners
  • Clean air that reduces the risk of bacteria and virus
  • No chemicals or refrigerants
  • Low energy consumption
  • Virtually maintenance-free equipment

How does it work

The heart of the evaporative cooling system is the cooling pad where the water evaporates and the air passing through the pads is cooled. Evaporative cooling pads are manufactured from fluted cellulose sheets that are glued together. The material is chemically impregnated with special compounds to prevent rot and ensure a long service life and easy maintenance.

Evaporative cooling and humidity

A given volume of air at a certain temperature and pressure is capable of absorbing and holding a certain amount of water vapour. If that volume of air contains 50% of the moisture it is capable of holding, we say it is at 50% relative humidity.

The hotter the day, the drier the air, the more cooling can be done by means of evaporation. In other words, the cooling effect is best when you need it most.

Our evaporative coolers are developed to work well in high-humidity environments too, however, and will remain much more efficient than a simple fan that just circulates warm air.

Our coolers will increase humidity by 2 to 5%, depending on temperature and humidity in the environment you want to cool. The slight increase is not noticeable in ventilated areas where the air produced by the unit is exhausted.

Suitable for

Products specifications

Attribute nameAttribute value
System unit
Cooling pad(dm³)70
Air flow (m³/h)8,000
Maximum area(m²)180
Power consumption(W)330
Power supply(V/Hz)230/1ph/50
Rated current(A)1.5
Fan speed3
Outlet versionsFront
Water consumption (l/h)8
Tank capacity(l)100
Weight (without/with water)(kg)32/132
Box size (l x w x h)(mm)520 x 870 x 1310
Product size( l x w x h)(mm)500 x 850 x 1410
Sound level(dB(A))62
Tank level controlyes
Direct water connection(inch)½
