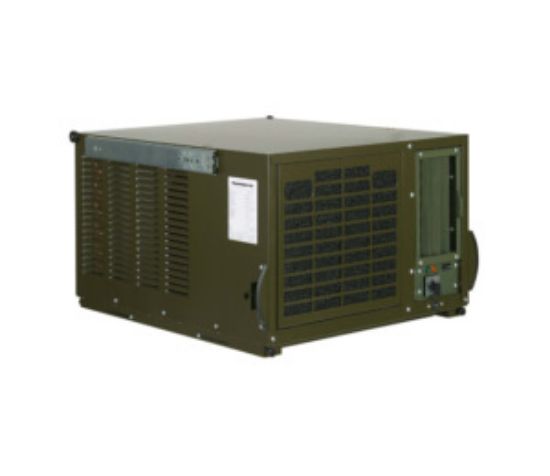

AC-M5 MKI – container cooler

SKU: AC-M5 MKI
Enquire Now Brochure not available

Overview

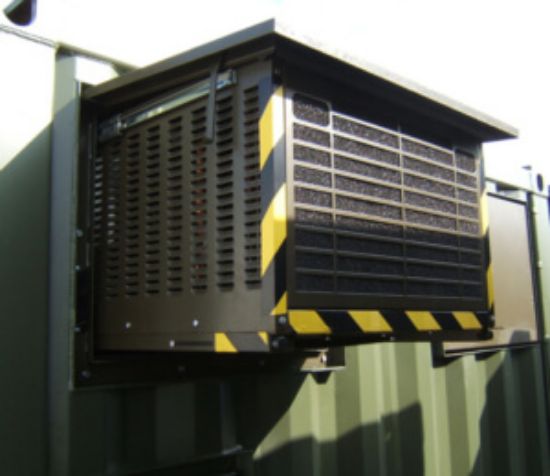

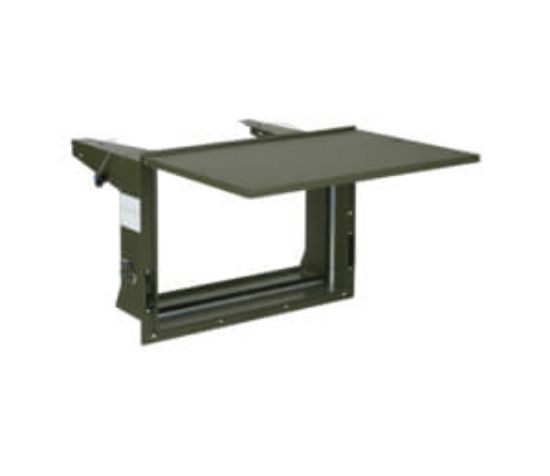

The AC-M5 MKI is designed for window mounting in ISO containers. Together with the trap door system the air conditioner is mounted inside the container. It is designed to store within the confinement of the ISO corners of the container during transportation or storage. The AC-M5 MKI is sliding in its trap door system and is deployed from the container for operation. Once deployed the unit is locked from inside the container when operating.

AC-M5 MKI has a fresh-air intake. For applications requiring CBRN/COLPRO compliance, please refer to the AC-M5 MKII product page.

Key features

  • Manufactured from hot dip galvanized and powder coated steel sheet
  • Top finish painting is standard NATO green, RAL 6014
  • Air-tight boundary to ambient environment
  • Full CBRN/COLPRO compliance (no fresh air intake)
  • Delivers cooling in ambient temperatures up to +60°C
  • Scroll compressor for high degree of reliability and low noise
  • Two-speed selector for the internal fan
  • “VENT-only” option for ventilation without cooling
  • Stores inside the container during transportation
  • Chosen as the NATO standard, conforming to all NATO requirements and norms
  • All units have unique NATO stock numbers (NSN)

Products specifications

Attribute nameAttribute value
System unit
Registered NSN numberyes
Operating temperature range, cooling(°C)-20 – +60
Operating temperature range, heating (°C)-32 – +20
Sound level, fan-speed 1 & 2 @ 1m(dB(A))52/59
Protection classIPX4
RefrigerantR134a
Nominal cooling capacity(KW)4.7
Power supply(V/Hz)230/1ph/50
Max. running current, cooling/heating(A)9.8/9.3
Weight(kg)79, 79
Product size( l x w x h)(mm)482 x 755 x 666
Heating capacity (optional)(kW)2
Locked rotor amperage (LRA)(A)47
Max. power consumption cooling/heating(W)2,300
Air flow (m³/h)900
