AC-M18 – tent cooler

SKU: AC-M18
Enquire Now Brochure not available

Overview

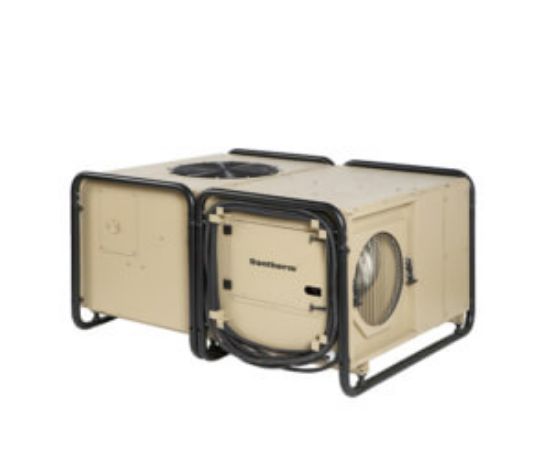

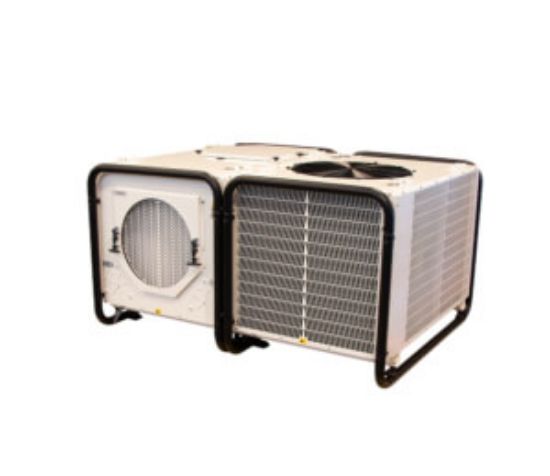

The AC-M18 air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. It is a compact, light-weight aluminium unit built into a rigid steel frame.

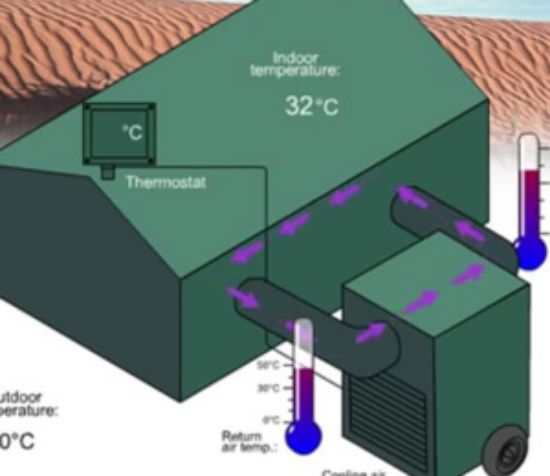

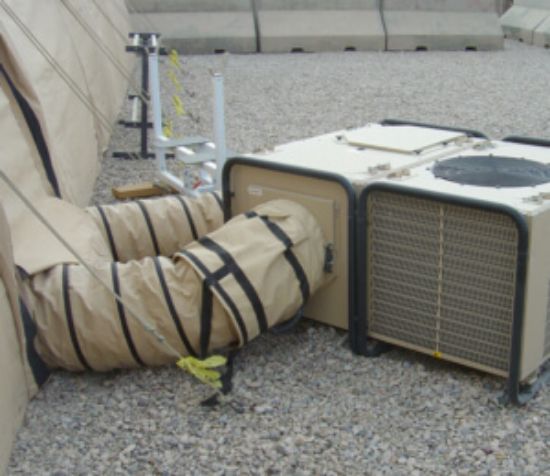

The AC-M18 is designed for outside installation with ducted supply and return air. For field hospitals, where the need for filtration is higher than that of normal accommodation, a dual filtration system for the internal air path is available. The ACM 18 is also available as a split system for sealed applications (ACM 18 CBRN).

Key features

  • Designed for optimal utilization of a standard 20" ISO container (24 pcs)
  • The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated
  • Top finish painting is standard sand colour
  • Option with built in heating will heat when ambient temperature is below 20°C
  • Scroll compressor for a high degree of reliability and low noise level
  • Automatic phase surveillance
  • Sequential start of units possible
  • HP/LP pressostat switches ensuring long compressor lifetime
  • Fresh air intake
  • Four way fork lift handling
  • Easy strap down on air cargo pallets and stackable (two units on top of each other)

Products specifications

Attribute nameAttribute value
System unit
Registered NSN numberyes
Operating temperature range, cooling(°C)-20 – +60
Operating temperature range, heating (°C)-32 – +20
Air flow (m³/h)2,500
Protection classIPX5
RefrigerantR134a
Nominal cooling capacity(KW)17.5/60,000
Heating capacity (optional)(kW)6/16
Power supply(V/Hz)400/3ph/50
Max. running current, cooling/heating(A)13.1/26
Locked rotor amperage (LRA)(A)73
Product size( l x w x h)(mm)780 x 1450 x 1140
Weight(kg)206
