AC-M18 CBRN – tent cooler

Enquire Now Brochure not available

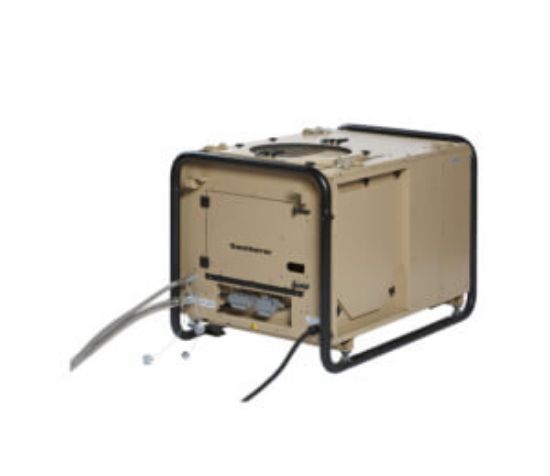

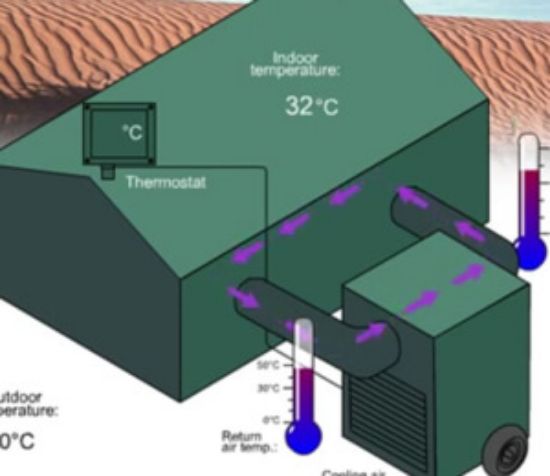

The AC-M18 CBRN air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents. The AC-M18 CBRN is a compact, light-weight aluminium unit built into a rigid steel frame. The air-conditioner is designed to operate on COLPRO applications with the evaporator module placed inside the shelter and the condenser module placed outside. The two modules are interconnected by refrigerant hoses and power cables.

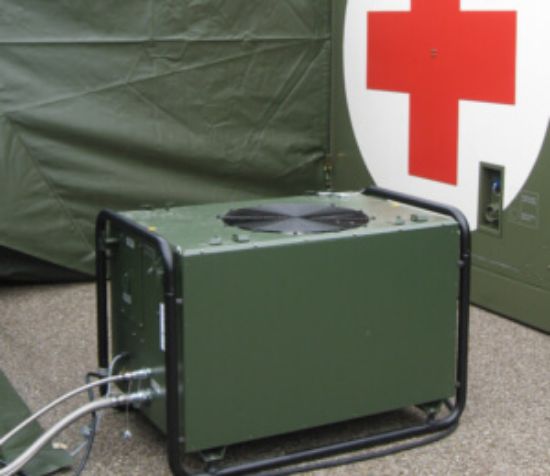

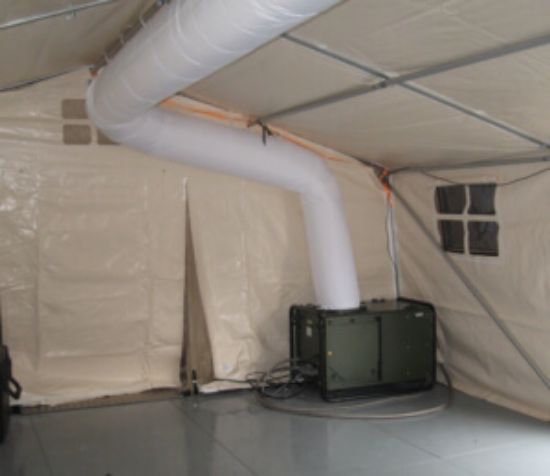

The AC-M18 is designed for outside installation with ducted supply and return air. For field hospitals, where the need for filtration is higher than that of normal accommodation, a dual filtration system for the internal air path is available. The ACM 18 is also available as a split system for sealed applications (ACM 18 CBRN).

Key features

  • The AC-M18 is built into a strong metal frame with insulated panels where relevant, powder coated
  • Top finish painting is standard sand colour
  • Scroll compressor for a high degree of reliability and low noise level
  • Automatic phase surveillance
  • Sequential start of units possible
  • HP/LP pressostat switches ensuring long compressor lifetime
  • Fresh air intake
  • Four way fork lift handling
  • Easy strap down on air cargo pallets and stackable (two units on top of each other)

Products specifications

Attribute nameAttribute value
System unit
Registered NSN numberyes
Operating temperature range, cooling(°C)-20 – +60
Operating temperature range, heating (°C)-32 – +20
Air flow (m³/h)2,500
Sound level @ 1m(dB(A))54
Protection classIPX5
Nominal cooling capacity(KW)17.5/60,000
Heating capacity (optional)(kW)16/20
Power supply(V/Hz)400/3ph/50
Max. running current, cooling/heating(A)16 (depending heating capacity)
Locked rotor amperage (LRA)(A)73
Max. power consumption cooling/heating(W)8,300/variable
Hose connection(Ømm)1 x 400
Product size( l x w x h)(mm)(2x) 780 x 725 x 1140
