AC-M11 – tent cooler

SKU: AC-M11

Enquire Now Brochure not available

Overview

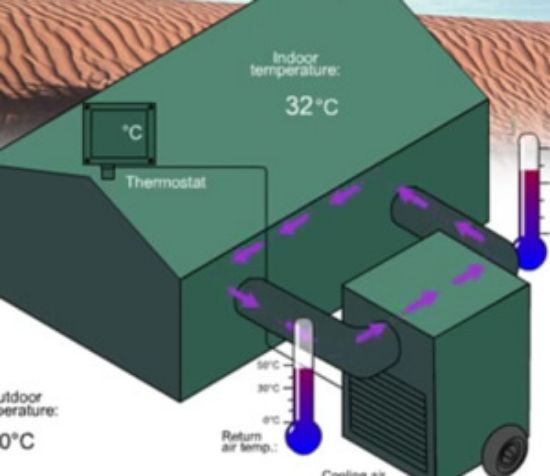

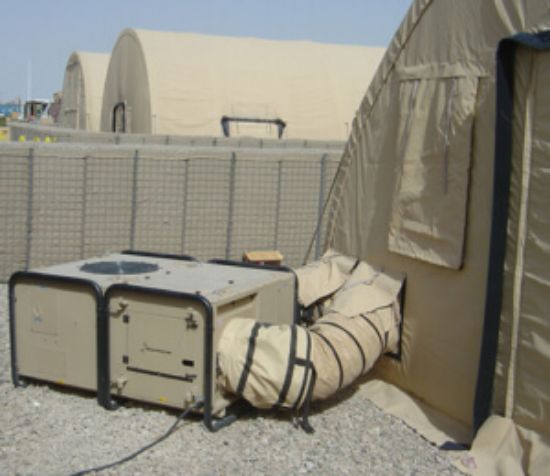

The AC-M11 air-conditioner is a portable unit developed primarily to provide air-conditioning in temporary or transportable buildings or tents.

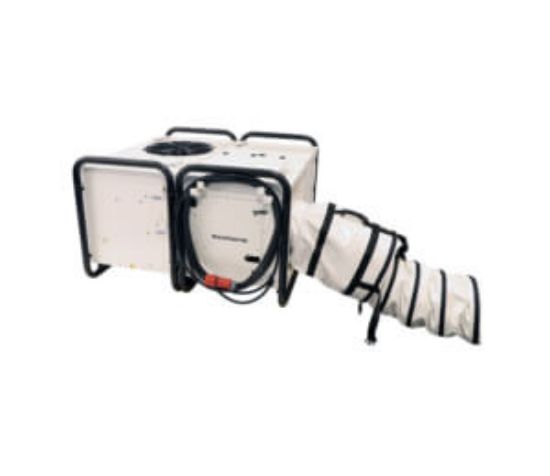

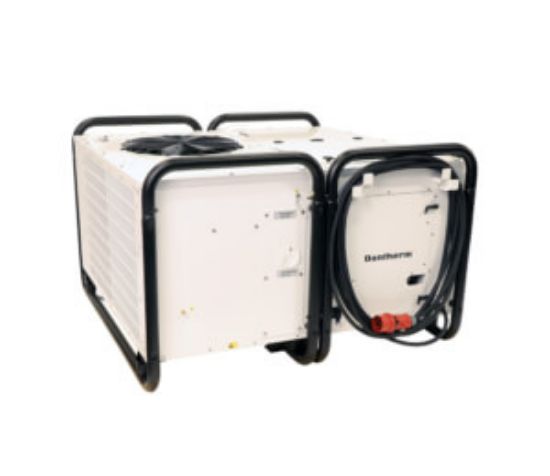

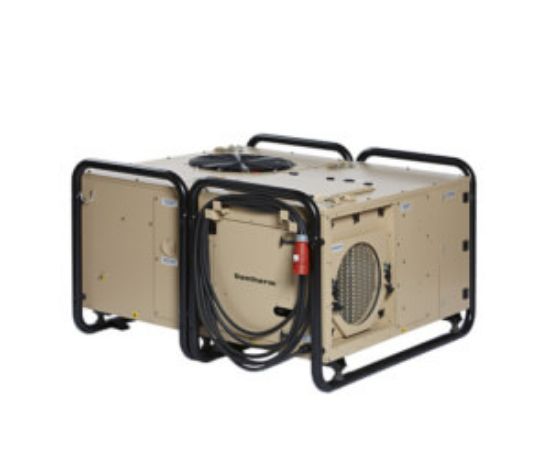

The AC-M11 is a small, light-weight aluminium unit built into a rigid steel frame. The unit is designed for outside installation with ducted supply and return air.

Key features

Designed for optimal utilization of a standard 20" ISO container (30 pcs)
The AC-M11 is built into a strong metal frame with insulated panels where relevant, powder coated
Top finish painting is standard sand colour
Option with built in heating will heat when ambient temperature is below 20°C
Scroll compressor for a high degree of reliability and low noise level
Automatic phase surveillance
Sequential start of units possible
HP/LP pressostat switches ensuring long compressor lifetime
Fresh air intake
Four way fork lift handling

Suitable for

Products specifications

Attribute name	Attribute value
System unit
Registered NSN number	yes
Operating temperature range, cooling(°C)	-20 – +60
Operating temperature range, heating (°C)	-32 – +20
Air flow (m³/h)	1700
Sound level @ 1m(dB(A))	55
Protection class	IPX5
Refrigerant	R134a
Nominal cooling capacity(KW)	11
Heating capacity (optional)(kW)	8
Power supply(V/Hz)	400/3ph/50
Max. running current, cooling/heating(A)	15/16
Locked rotor amperage (LRA)(A)	65.5
Max. power consumption cooling/heating(W)	4,200/8,800, 4,200/8,800
Hose connection(Ømm)	1 x 315
Product size( l x w x h)(mm)	735 x 1140 x 1140
Weight(kg)	170

The professionals choice

Master® is the leader in portable kerosene heaters, pushing the envelope of design and engineering to bring forth the next steps in heating technology industry professionals trust all over the world.
